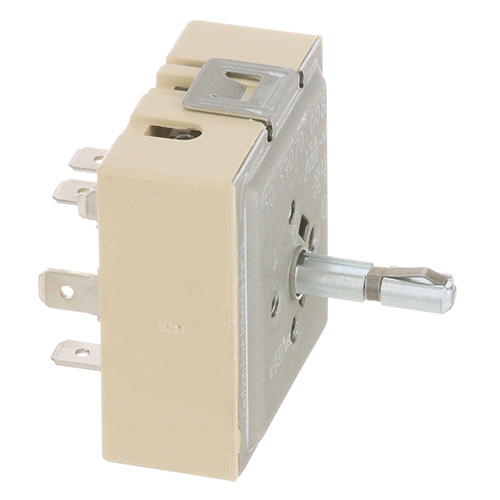

APW 69103-EGO Conveyor Toaster Infinite Switch 15 AMP 240V

SKU: 69103-EGO Brand:
APW
Availability:
In Stock
(0)
$41.52 Price reduced from $84.75
Save $43.23
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Infinite Switch 240V, 13 Amp, Ego, .179" Flat Down W/Clip.
4 Screw Holes For Mount, 6 Term.
Dial # 22-1166, Off-Lo-2-6-Hi, Or
Pointer Dial For Apw Steamer Ds-1A = #22-1466
Old Style "Pilot" Terminal Now Relocated And Labeled "P2"
Apw
Toasters Fits Models At, Ft, Bt, T, Xtrm-2, Xtrm-2 3 Inch,
Xtrm-3, Xtrm-3 3 Inch, Xwav-1417A
Hot Dog Steamer Ds-1A~
Food Warmer Hfw(2,2D,3,3D,4,4D,5,5D) Made After
2/1/89~
Series Fd.
Prince Castle Knob Oem #70-042
Prince Castle Conveyor Toaster 428, 428-Bx, 428-Ql

Description

The APW 69103-EGO Conveyor Toaster Infinite Switch 15 AMP 240V supplies variable power to the heating elements. The switch changes the electrical resistance and determines the flow of current to the elements. This allows the fine-tuning of temperatures, and toasting can be performed precisely and without overheating. It is installed in the control system of the toaster, and it works constantly to maintain the required heat levels, and it works together with thermal sensors to have even browning. The switch also safeguards the internal parts, maintains the standard time of cooking, and increases the operation of the appliance.

More Information:

  • APW WYOTT:1301602 ,1301629 ,2J-87053-EGO ,69103 ,69103-EGO ,69103EGO ,87053 ,87053-EGO ,APW1301602 ,APW1301629 ,APW69103-EGO ,APW87053-EGO||BAKERS PRIDE:2E-M1368A ,BKPM1368A ,BKPM1368X ,M1368A ,M1368X||PRINCE CASTLE:78-173S ,PC78-173S||STAR MFG:2J-Z2192 ,PS-RG5095||STERO:STA2J-Z2192 ,STAPS-RG5095

Step1: Turn off power at breaker for safety.

Step2: Remove control panel access cover and note existing wiring layout.

Step3: Disconnect old switch and detach mounting screws/clip.

Step4: Position new switch and secure with screw holes and clip.

Step5: Reconnect terminals matching original wiring diagram.

Step6: Reassemble panel and restore power test operation while monitoring for abnormal heating.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the APW 69103-EGO Infinite Switch?

    Regularly inspect the switch terminals for loose connections or signs of burning and tighten as needed. Clean external contacts to prevent carbon buildup that can affect performance. Always disconnect power before servicing to ensure safety.

  • What are common issues with the APW 69103-EGO Infinite Switch?

    • Intermittent heating or inconsistent temperature control.
    • Burnt or loose terminal connections.
    • Switch failure causing no power output.
    • Overheating due to electrical overload or poor wiring connection.
