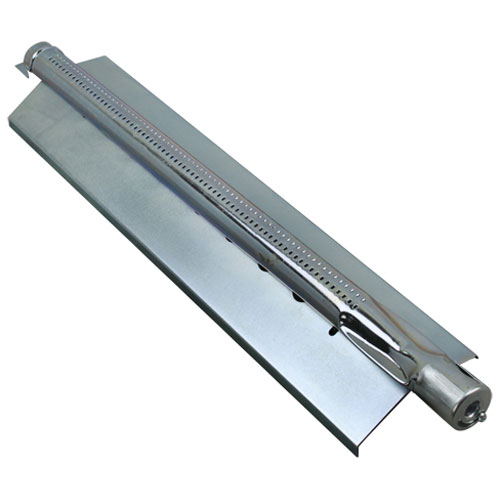

Bakers Pride L5019X Charbroiler Tubular Burner 23-1/2" W/Deflector Shield
$58.49
Price reduced from
$156.05
Specifications:
| Attribute | Details |
|---|---|
| Tubular Burner W/ Deflector Shield | |
| [ 23-1/2" ] Steel ] Air Shutter - 1-1/4" Face, | |
| 17-1/2" Burn, 19-3/4" X 4-3/8" Shield | |
| Air Shutter Only Use # 26-1864 | |
| Bakers Pride | |
| Broiler Xx Units That Use Aluminized Steel Burners | |
| (Some Use Cast Iron). | |
| Series | Ch. |
Description
The Bakers Pride L5019X Charbroiler Tubular Burner 23-1/2" W/Deflector Shield is a heat source that directs the combustion of gases through the tubular burner, with the shield used to spread the flame and to protect the surrounding surfaces. The burner is ignited, and when it burns, flames are produced along the length of the burner to warm the charbroiler surface to be cooked. This assembly is installed beneath the cooking grates of compatible charbroiler units and is aligned with the supply of gas. It is held in and this is when the burner is worn or damaged.
More Information:
- BAKERS PRIDE:2F-L5013A ,BKPL5019V ,BKPL5019X ,BKPL5028V ,L5013A ,L5013X ,L5019V ,L5019X ,L5028V
Step1: Shut off the gas supply and let the appliance cool.
Step2: Remove grates and access the burner compartment.
Step3: Disconnect the burner from the gas manifold.
Step4: Slide out the old burner carefully.
Step5: Insert the new burner and reconnect the gas line, reassemble the grates.
Step6: Restore gas and check for proper ignition and flame pattern.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
Thank you! Your review has been submitted.
-
What maintenance is required for the Bakers Pride L5019X Tubular Burner?
Clean the burner ports to remove food debris, grease, or carbon buildup. Inspect for rust, cracks, or blockages that may affect flame quality. Ensure proper alignment and secure connections before use. Regular maintenance improves even heating and stable operation.
-
What are the common issues with the Bakers Pride L5019X Tubular Burner?
- Uneven flame or poor ignition.
- Clogged ports are causing weak heat output.
- Rust or corrosion affecting performance.
- Cracks or damage leading to gas leaks.
