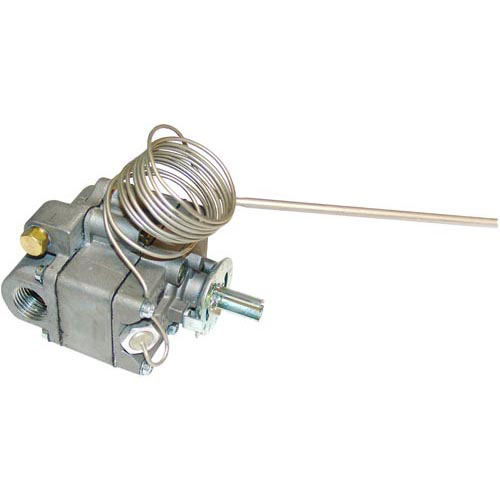

Bakers Pride M1006X Oven Thermostat W/ 3/16" X 14-1/4" Bulb 1/2" FPT

SKU: M1006X Brand:
Bakers Pride
Availability:
In Stock
(0)
$628.84 Price reduced from $985.64
Save $356.80
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Fdto-1 ] [ Temp Low 250-550 ] [ Bulb 3/16" X 14-1/4" ]
[ Cap 54" ] [ Gas 1/2" Fpt In/Out( Side ) F & E ]
[ Dial # 22-1009 150-550 ] Or
[ # 22-1203 Low-250-550 ]
Bakers Pride
Oven 101, 104, 201, 204, 301, 304, 401, 404.
Southbend
Grill T-121-0/1, T-161-0/1, T-1361, T-1421-0/1.
Oven 136 & 142 & W/Suffix -0 & -1.

Description

The Bakers Pride M1006X Thermostat functions as a durable precise temperature controller which specifically targets ovens. The M1006X thermostat operates through a 3/16" x 14-1/4" bulb which connects to a 1/2" FPT port to provide efficient temperature control. This thermostat improves cooking precision so it works best for commercial kitchens which demand consistent outcomes. This device combines durable materials with straightforward installation and maintenance features because of its easy-to-use design. The component serves high-temperature environments to optimize oven performance thus minimizing waste and maximizing food preparation productivity.

More Information:

  • BAKERS PRIDE:AS-M1006X ,BKPM1006X ,M1006X ,M1038X||SOUTHBEND:1010401 ,1010499 ,SOU1010499||U-LINE:4200-017 ,4200-01G

Step1: Turn off gas and electrical power and allow oven to fully cool before servicing.

Step2: Remove control panel and disconnect old thermostat capillary tube and wiring carefully.

Step3: Install new thermostat in original mounting position and secure firmly.

Step4: Route sensing bulb into oven cavity, avoiding sharp bends or contact with hot surfaces.

Step5: Reconnect wiring and gas capillary connections per wiring diagram.

Step6: Restore power and gas, then test temperature control and verify safe cycling operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Bakers Pride M1006X Thermostat?

    Clean the oven thermostat probe and bulb regularly to prevent grease buildup and inaccurate readings. Inspect wiring and connections for looseness or corrosion. Ensure proper calibration and replace damaged sensing bulb promptly to maintain stable temperature control.

  • How do I install the Bakers Pride M1006X Thermostat?

    • Disconnect power from the oven.
    • Access the control panel and document the wiring layout.
    • Remove the old thermostat and carefully pull out the capillary bulb from the oven cavity.
    • Install the new Bakers Pride M1006X Thermostat and route the capillary bulb exactly as the original.
    • Reconnect all wires securely and mount the thermostat in place.
    • Restore power and verify accurate temperature cycling.

  • What are common issues with the Bakers Pride M1006X Thermostat?

    • Damaged bulb/capillary tube.
    • Slow response to heat changes.
    • Failure to maintain set temperature.
    • Electrical connection faults.
    • Gas flow inconsistencies.

  • What are the operating limitations of the Bakers Pride M1006X Thermostat?

    Thermostats used in Bakers Pride ovens typically regulate temperatures in the 200°F–600°F range, depending on the model. The capillary bulb must remain intact—any damage or pressure loss will cause immediate control failure.

  • Which models are compatible with the Bakers Pride M1006X Thermostat?

    The M1006X thermostat is compatible with Bakers Pride gas deck ovens 101, 201, 301, 307, and 401. Be sure to check your oven’s model number before replacing the thermostat.
