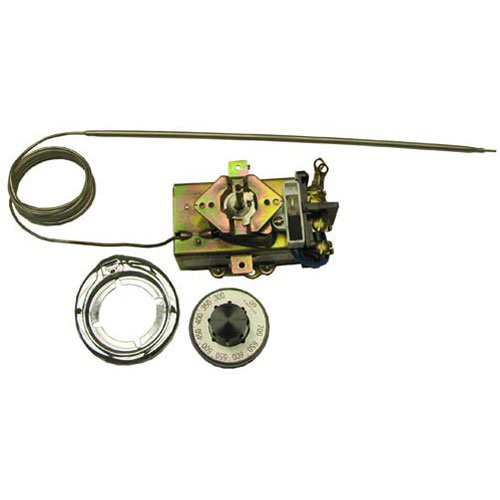

Bakers Pride M1021X Thermostat W/Dial & Light 3/16" X 12" Bulb D1/D18

SKU: M1021X Brand:
Bakers Pride
Availability:
In Stock
(0)
$271.96 Price reduced from $426.27
Save $154.31
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Type - D1/D18 ] [ Temp 300-700 ] [ Bulb 3/16" X 12"
Tin/Zinc ] [ Cap 60" ] [ Mount W/ Front Ears]
Dial Included [ Dial A253, K-131, # 22-1008 Off-700-300 ]
Light Included D173, # 38-1068,
[ Includes Bezel A557, K-160, # 26-4088
For Red Knob, [ 2" Dia ] [ Off-10-1] [Mount .187"] [Flat
Left ] Use # 22-1271
D1'D18 T'Stat, Dpst For Ac Operation, 4 Terminal
Used In Applications Requiring High Current.
Bakers Pride
Oven Where Applicable.
Vulcan Grill Series Vr (On Elec Range).
Oven Vo-444P (After 10/72)~
Vo004, Vo008 Pizza.

Description

The Bakers Pride M1021X Thermostat W/Dial & Light 3/16" X 12" Bulb D1/D18 regulates the temperature by sensing heat through its bulb and adjusting the heating cycle accordingly. The thermostat works with an integrated dial and indicator light, allowing temperature settings to be selected, while providing the visual status of operation. It is installed within the commercial equipment temperature control assembly, with the sensing bulb positioned inside the cooking chamber to monitor heat levels. This component maintains the selected temperature range during baking, roasting, and other cooking processes in commercial foodservice equipment.

More Information:

  • BAKERS PRIDE:M1021X ,M1031X||GARLAND:1010304 ,G01934-1||HOBART:00-415119-000G3 ,115119-G3 ,115119G3 ,24147-1 ,415119-000G3 ,415119-G3||MARSAL AND SONS:70435||VULCAN HART:00-415119-000G3 ,115119-G3 ,115119G3 ,24147-1 ,415119-000G3 ,415119-G3

Step1: Disconnect power and ensure oven is cool before servicing.

Step2: Remove control panel to access thermostat.

Step3: Detach old thermostat, note wiring and bulb routing.

Step4: Install bulb probe into original sensing tube without bending.

Step5: Mount new thermostat securely and connect terminals.

Step6: Reassemble panel, restore power, and test temperature control and indicator light.

Step7: Check all connections are secure and check for proper operation and safety before regular use.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Bakers Pride M1021X Thermostat with Bulb?

    Regularly inspect the thermostat bulb and capillary tube for bends, cracks, or damage to ensure accurate temperature sensing. Clean the dial and exterior to prevent grease buildup that may affect readability. Check electrical connections for looseness or corrosion. Ensure proper calibration periodically for consistent oven performance and safety.

  • What are common issues with the Bakers Pride M1021X Thermostat with Bulb?

    • Inaccurate temperature control due to faulty calibration or worn sensing bulb.
    • Delayed heating response caused by damaged or kinked capillary tube.
    • Dial light failure leading to poor visibility of settings.
    • Intermittent operation from loose or corroded electrical connections.
