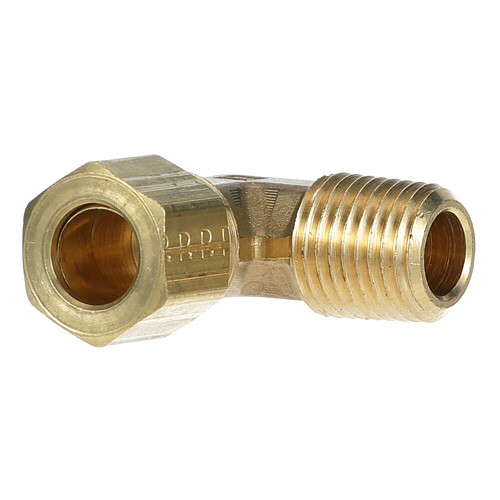

Imperial 30292 Range Male Elbow Brass 90° 3/8" C MIPL x 1/4"

SKU: 30292 1-30292 Brand:
Imperial
Availability:
In Stock
(1)
$6.08
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Male 90 Degree Elbow,
  • 1/4" Mpt X 3/8" Cct Nut & Ferrule.
  • Star Griddle 824, 836, 848, 860, 872 T

Description

The Imperial 30292 Range Male Elbow Brass 90°C 3/8" MIPL x 1/4" is a threaded brass plumbing component that directs the flow of gases or fluids at a right angle between components in commercial ranges. The compression inlet and male thread outlet 3/8" and 1/4" respectively, provide safe mechanical connections between supply lines and control valves. It is installed where a direction change is required, where it joins rigid or flexible piping. In the supply system it also assists in the correct routing of gas to internal parts, ensuring tight seals.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 1.38 in
  • Height: 0.63 in
  • Width: 1.25 in

Step1: Shut off gas or power supply and let equipment fully cool before starting.

Step2: Remove the existing elbow fitting and clean all connection threads thoroughly.

Step3: Apply the thread sealant to the male threads.

Step4: Thread the new elbow into position by hand to avoid cross-threading.

Step5: Tighten securely with a proper tool, ensuring correct alignment of piping.

Step6: Restore supply and test all joints for leaks using an proper leak-detection solution.

  • What maintenance is required for the Imperial 30292 Male Elbow?

    Inspect the male elbow regularly for leaks, corrosion, or loose fittings. Tighten connections and ensure proper alignment to prevent pressure loss or damage. Clean debris buildup and replace the fitting if wear or cracks appear.

  • What are common issues with the Imperial 30292 Male Elbow?

    • Leakage at joint.
    • Thread wear or stripping.
    • Misalignment causing pressure drop.
    • Reduced sealing efficiency.
    • Loose fitting connection.
    • Pressure leakage during operation.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Great Fit
    Ansley —

    Quick install, works flawlessly
