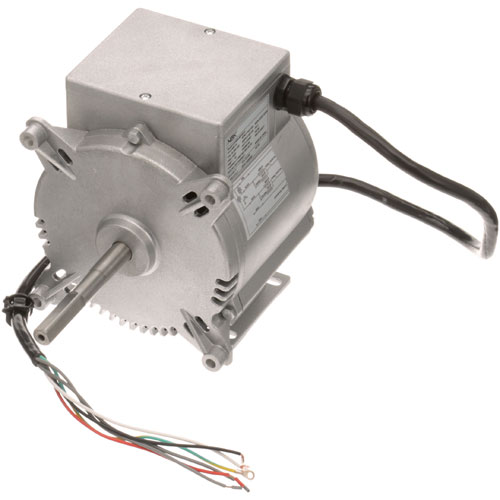

Blodgett 32244 Motor, 2-Speed, 208-240V , 1/3Hp, 1725/1140

SKU: 32244 Brand:
Blodgett
Availability:
In Stock
(0)
$399.56 Price reduced from $943.26
Save $543.70
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
**Old Style** [ 200-230V, ][ 50/60 Hz ] [ 1/3Hp ] [1P]
[2 Speed 1725/1140 RPM] [2.8-2.9/1.3-1.4A] [J56Z Frame]
[ Rotation Cw (Facing Shaft Of Motor )]
[ 5/8 X 3-1/4 Shaft ] [ 8-3/4 X 6-3/8 Mtg,Plate ]
////Blodgett Changed Motor Style - Different Than Original
But Functions The Same. Includes Install Instructions////
**New Style** [ 208-240 ] [ 60 Hz ] [ 1/2 Hp ] [ 1P ]
[2 Speed 1710/1120 RPM] [2.7/1.8 A] [Rotation Cw (Looking
From Back Of Motor)] [ 5/8 X 3-1/4 Shaft With Two Flats ]
Blodgett Blower Wheel 9-3/4 Dia. # 26-1328 Or
Blodgett Blower Wheel 10" # 26-4052
Blodgett Oven Ez/Efe, Fa/Gzl, Mark V, Zephaire E

Description

The Blodgett 32244 1/3 horsepower 2-speed motor which is suitable for models like the EZ/EFE, FA/GZL, Mark V and Zephaire E comes with a power input of 208-240V, 50/60 Hz, and has a reliable performance at 1725/1140 RPM. It also boasts of a shaft size of 5/8” x 3-1/4”, CW rotation which means the motor faces the shaft and J56Z frame. This is the older model of the motor and while it looks slightly different from the current motor it performs the same duty, Installation instructions are included.

More Information:

  • BLODGETT:-15400 ,-32244 ,15400 ,32244 ,BL32244

Step1: Turn off and unplug the appliance to prevent electrical shock.

Step2: Remove the access panel to reach the existing motor.

Step3: Disconnect wiring from the old motor carefully.

Step4: Unscrew and remove the old motor from its mounting bracket.

Step5: Install the new motor securely and reconnect all wires.

Step6: Replace the access panel, restore power, and test motor operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What does a blower assembly include?

    A blower assembly typically includes a motor, a fan or impeller,, and the housing or casing that surrounds them.

  • Why would I need to replace a blower assembly?

    You might need to replace a blower assembly due to wear and tear over time, motor or component failures, decreased performance, or if it becomes inefficient or noisy beyond repair.

  • How can I contact your customer support?

    To contact our customer support team Call us at 866 963-0907 or you can also mail us at contact@partsfe.com.

  • What maintenance is required for the Blodgett 32244 Motor?

    Ensure the motor shaft spins freely and lubricate bearings with the recommended oil if needed. Confirm electrical connections are tight and insulation is intact. Monitor for unusual vibration or noise. Always disconnect power before servicing to prevent electrical hazards.

  • What are common issues with the Blodgett 32244 Motor?

    • Motor not starting on either speed.
    • Overheating during use.
    • Unusual vibration noise.
    • Reduced airflow from the fan attachment.
