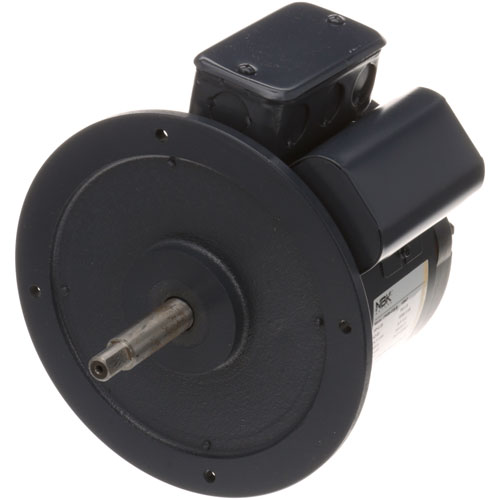

Jade Range 3098710V Convection Oven 1/4HP Motor 60Hz 1725 RPM 115V

SKU: 3098710V Brand:
Jade Range
Availability:
In Stock
(0)
$1,288.54 Price reduced from $2,055.09
Save $766.55
Have a Question? +1 (866) 863-0907 / (630) 326-8602

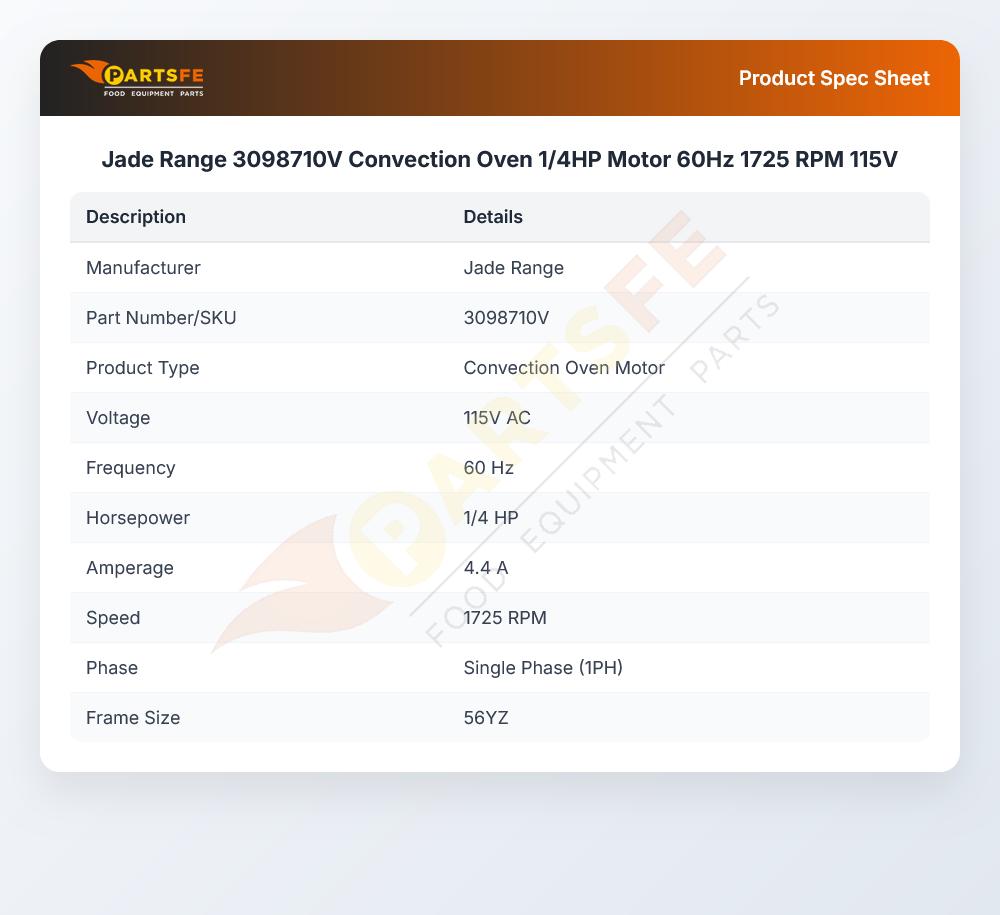

Specifications:

Attribute Details
115V/60Hz, 1725 RPM, 4.4A, 1/4Hp, 1Ph, Frame = 56Yz

Description

The Jade Range 3098710V Convection Oven Motor works by operating the fan system that distributes hot air uniformly all over the oven cavity during cooking or baking processes. It operates by changing electrical energy into mechanical rotation to move the fan blades to ensure that the air moves uniformly to ensure even distribution of temperatures. This motor is generally mounted at the back of the interior of the oven and directly linked to the fan assembly where it provides adequate airflow over the heating elements and the inside of the cooking chamber.

More Information:

  • JADE RANGE:3098710V ,JD3098710V

Step1: Turn off oven power and unplug the unit completely.

Step2: Allow the motor area to cool before servicing.

Step3: Remove the rear panel to access motor assembly.

Step4: Disconnect wiring and label all connections carefully.

Step5: Unbolt old motor and remove from bracket.

Step6: Install new motor, align shaft, tighten bolts, reconnect wiring, and test operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Jade Range 3098710V Motor?

    Regularly clean the motor to remove dust and grease, and inspect wiring for wear. Lubricate moving parts if recommended, and ensure proper ventilation to prevent overheating. Routine checks prevent malfunctions and maintain safe, efficient operation.

  • What are common issues with the Jade Range 3098710V Motor?

    • Motor overheating or stalling.
    • Excessive vibration or unusual noise.
    • Electrical connection faults.
    • Reduced fan speed affecting cooking performance.
