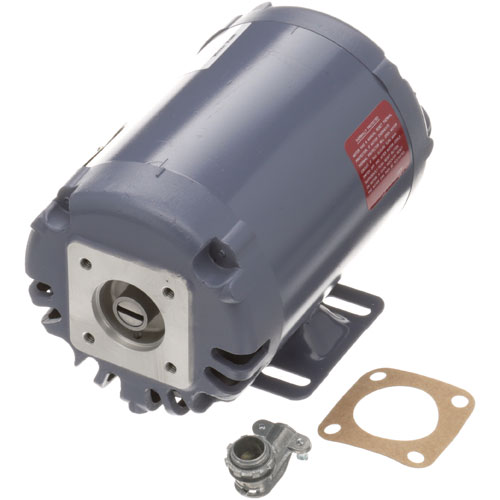

Frymaster 8261756 Pump Motor W/Gasket Kit 50/60Hz 208V

SKU: 8261756 Brand:
Frymaster
Availability:
In Stock
(0)
$463.66 Price reduced from $999.27
Save $535.61
Have a Question? +1 (866) 863-0907 / (630) 326-8602

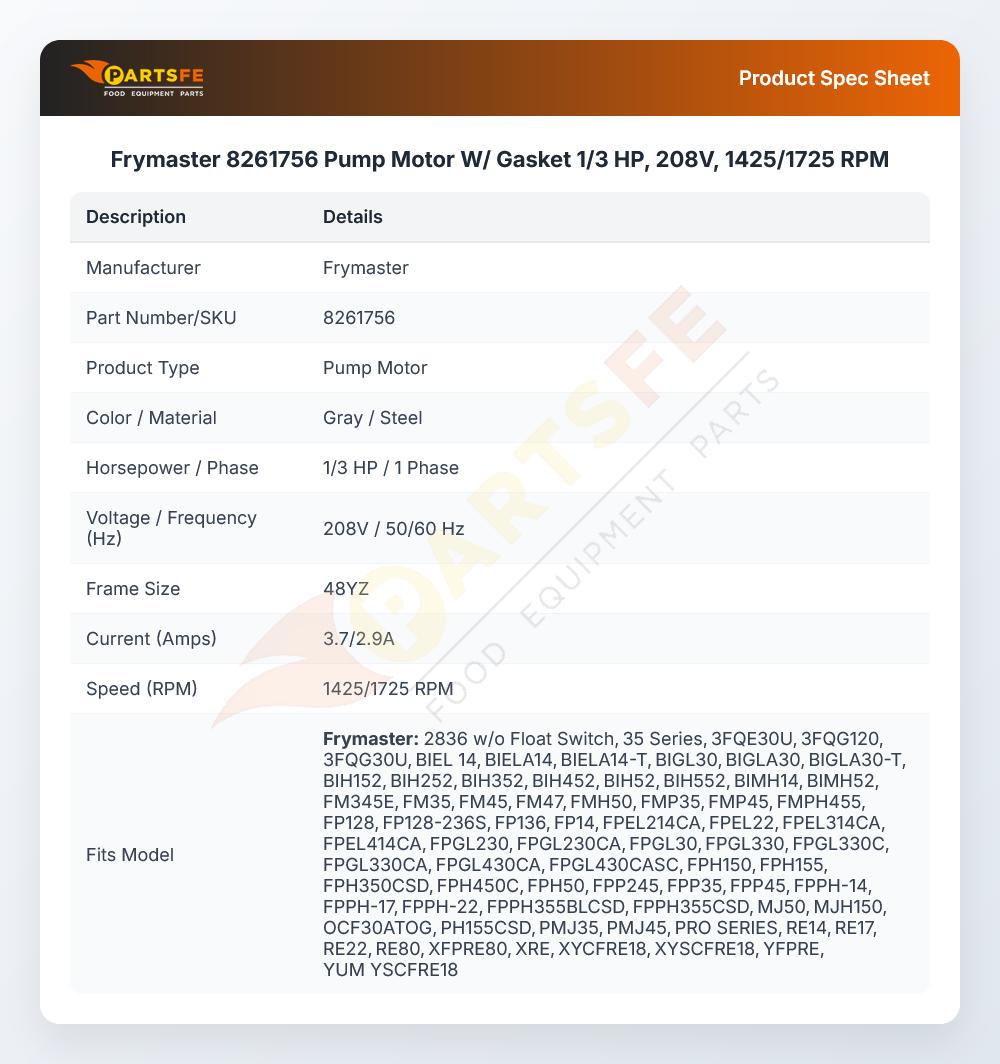

Specifications:

Attribute Details
Pump Motor
1/3 Hp, 208V, 50/60 Hz, 3.7/2.9A, 1425/1725 RPM, 1 Phase
Frame = 48Yz, With Gasket
Frymaster 2836 W/O Float Switch, Bih152, Bih252, Bih352,
Bih452, Bih52, Bih552, Biph14, Biph252/255, Biph352/355,
Biph452/455, Biph52/55, Biph552, Bire14, Fh150, Fm345E,
Fm35, Fm45, Fm47, Fmh50, Fp128-136S, Fp128-236S, Fp228,
Fph150, Fph350Csd, Fph50, Fpph355Blcsd, Fpph355Csd, H14,
H17, H22, H50, H55, Jbih252, Mh152, Mh252, Mh352, Mh452,
Mh52, Mh552, Mj35, Mj45, Mj47, Mjh150, Mjh50, Mph14,
Mph152/155, Mph252/255, Mph352/355, Mph452/455, Mph52/55,
Mre14, Ph155Csd, Pmj35, Pro Series, Re14, Re17, Re22

Description

The Frymaster 8261756 Pump Motor W/Gasket Kit 50/60HZ 208V is an electrical system that transforms electrical power into rotational power that drives the appliance pump to pump cooking oil throughout the heating and filtration process. The integrated motor is coupled with the pump and the gasket kit that is included seals the mating surfaces to allow consistent fluid transfer during operation. The assembly is placed in the pump compartment of the fryer attached to the pump housing and motor mount under the frypot. It is set to operate on the provided motor-and-gasket set.

More Information:

  • DEAN:826-1756||FRYMASTER:807-6321 ,8076321 ,826-1756 ,8261756 ,FM826-1756 ,FM8261756

Step1: Disconnect electrical power and allow the unit to cool completely.

Step2: Shut off and secure the oil system to prevent spills or pressure release.

Step3: Remove the access panel to reach the pump motor assembly.

Step4: Disconnect electrical wiring and label connections for correct reassembly.

Step5: Unbolt and carefully remove the old pump motor and gasket assembly.

Step6: Position the new motor with gasket aligned to the mounting surface.

Step7: Secure mounting bolts evenly, reconnect wiring, and ensure all seals are tight.

Step8: Restore power, check for leaks, and test oil circulation and pump operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Frymaster 8261756 Pump Motor With Gasket?

    Inspect and clean the pump motor regularly to prevent grease buildup and debris around the gasket. Ensure electrical connections remain tight and free from corrosion. Lubricate moving components if specified by manufacturer guidelines. Always disconnect power before servicing.

  • What are common issues with the Frymaster 8261756 Pump Motor With Gasket?

    • Overheating due to motor strain or blocked airflow.
    • Pump failure from worn seals or gasket leakage.
    • Irregular speed causing inconsistent fluid circulation.
    • Electrical faults leading to startup failure or shutdown.
