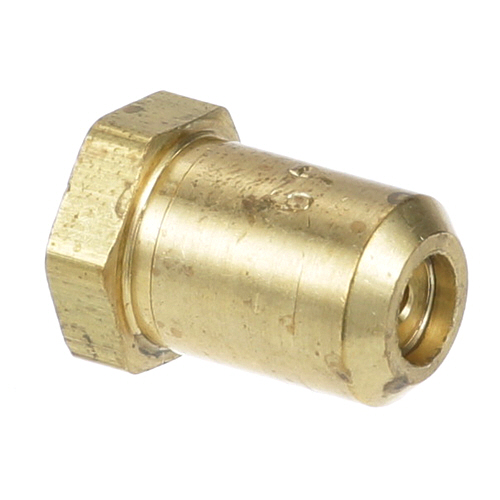

ATOSA 301040013 Burner Orifice #49

SKU: 301040013 Brand:
ATOSA
Availability:
In Stock
(0)
$6.08
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Burner Orifice #49
Imperial
Broiler Icb-4827, Icb-6027.
Series Gd (Glowing Devil).
Range Series Ihr.

Description

The ATOSA 301040013 Burner Orifice #49 is a gas metering part that controls the flow of fuel to one burner in commercial cooking equipment. The calibrated orifice of the number #49 regulates the amount of gas to pass into the burner tube. It clamps into the jet holder of the burner and it is directly connected to the gas delivery system of the appliance. In the combustion system, it aids in the balanced distribution of fuels and stable operation, which leads to even cooking performance and predictable surface temperatures when in use.

More Information:

  • APW WYOTT:2066849 ,AS-2066849||ATOSA:301040013||BAKERS PRIDE:2066849 ,BKPR3043A ,BKPR3043X ,R3043A ,R3043X||GARLAND:1020849 ,223242-49 ,G7266-49F ,GL1020849 ,GL223242-49 ,GLM8-49 ,M8-49||GLASS MAID:8-49||HOBART:00-719951-00049 ,19951-49 ,719951-00049 ,719951-49||IMPERIAL:1700-49 ,2064 ,IMP1700-49 ,IMP2064||JADE RANGE:46-213 ,460-213-000 ,460213000 ,4621300000||MAGIKITCH'N:29-08-00323A ,2908-0032300 ,MK29-08-00323A ,MK2908-0032300||SOUTHBEND:1006449 ,1008749 ,SOU1006449 ,SOU1008749||STAR MFG:2A-0032300||VULCAN HART:00-719951-00049 ,19951-49 ,719951-00049 ,719951-49 ,VH00-719951-00049 ,VH19951-49 ,VH719951-00049 ,VH719951-49

Step1: Turn off gas supply and disconnect power.

Step2: Allow equipment to cool completely.

Step3: Remove burner assembly cover using a proper tool.

Step4: Locate and unscrew the old orifice carefully.

Step5: Install the new orifice and tighten securely.

Step6: Reassemble burner components.

Step7: Restore gas and power, then check for leaks and proper flame.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the ATOSA 301040013 Burner Orifice?

    Clean the burner orifice regularly to prevent carbon buildup and clogging that can affect gas flow. Inspect for blockages, wear, or corrosion during regular service. Ensure proper alignment and secure fitting to maintain efficient combustion and better operation.

  • What are common issues with the ATOSA 301040013 Burner Orifice?

    • Clogging from grease or carbon buildup causing uneven flame.
    • Reduced gas flow leading to weak burner performance.
    • Corrosion or wear affecting combustion efficiency.
    • Misalignment resulting in improper ignition or flame instability.
