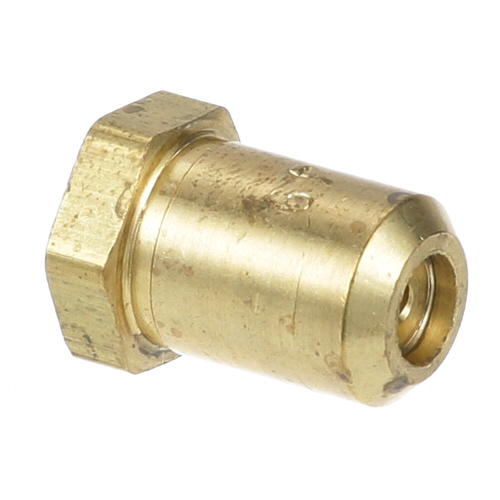

Magikitch'N 2908-0032300 Griddle Burner Orifice #49 Natural Gas

SKU: 2908-0032300 Brand:
Magikitch'N
Availability:
In Stock
(0)
$6.08
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Burner Orifice #49
Imperial
Broiler Icb-4827, Icb-6027.
Series Gd (Glowing Devil).
Range Series Ihr.

Description

Magikitch'N 2908-0032300 Burner Orifice 49 is a gas metering element that is used in natural gas commercial griddles. It works by regulating the supply of natural gas through supply valve to the burner and the size of the flame and amount of heat produced during cooking. This opening is fitted directly into the burner of the compatible griddles, and this is to ensure a correct fit with the appliance. The gas delivery system is essential to aid in maintaining uniform combustion and even heat distribution.

More Information:

  • APW WYOTT:2066849 ,AS-2066849||ATOSA:301040013||BAKERS PRIDE:2066849 ,BKPR3043A ,BKPR3043X ,R3043A ,R3043X||GARLAND:1020849 ,223242-49 ,G7266-49F ,GL1020849 ,GL223242-49 ,GLM8-49 ,M8-49||GLASS MAID:8-49||HOBART:00-719951-00049 ,19951-49 ,719951-00049 ,719951-49||IMPERIAL:1700-49 ,2064 ,IMP1700-49 ,IMP2064||JADE RANGE:46-213 ,460-213-000 ,460213000 ,4621300000||MAGIKITCH'N:29-08-00323A ,2908-0032300 ,MK29-08-00323A ,MK2908-0032300||SOUTHBEND:1006449 ,1008749 ,SOU1006449 ,SOU1008749||STAR MFG:2A-0032300||VULCAN HART:00-719951-00049 ,19951-49 ,719951-00049 ,719951-49 ,VH00-719951-00049 ,VH19951-49 ,VH719951-00049 ,VH719951-49

Step1: Turn off gas supply and disconnect electrical power before servicing.

Step2: Remove griddle front panel and locate burner orifice assembly.

Step3: Unscrew existing orifice carefully using correct tool.

Step4: Install new orifice securely.

Step5: Tighten to manufacturer specification without over-torquing threads.

Step6: Reassemble burner components and reinstall all panels properly.

Step7: Restore gas supply, check for leaks using soapy water solution, and ensure safe operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Magikitch'N 2908-0032300 Burner Orifice?

    Regularly inspect the griddle orifice for grease buildup, carbon deposits, or clogging that can affect gas flow and flame quality. Clean gently using proper non-abrasive tools and ensure proper alignment during reinstallation. regular checks improve efficiency and better combustion operation.

  • What are common issues with the Magikitch'N 2908-0032300 Burner Orifice?

    • Uneven gas flow affecting flame stability.
    • Wear or corrosion of orifice opening.
    • Improper fit causing leakage or reduced performance.
    • Partial blockage from carbon buildup leading to inconsistent burner output.
