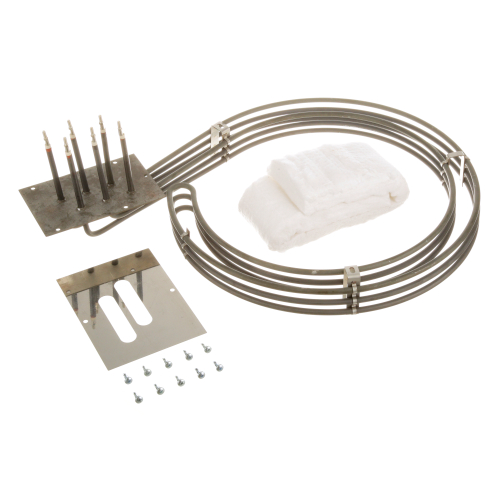

Blodgett 33244 1-3PH Oven Element Assembly W/ Screw Terminals, 12"x22"

SKU: 33244 Brand:
Blodgett
Availability:
In Stock
(0)
$310.97 Price reduced from $623.45
Save $312.48
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Null

Description

The Blodgett 33244 Oven Heating Element Assembly transforms electrical energy into heat, enabling the oven to achieve and sustain the required cooking temperature. It provides even heat distribution in the oven cavity which provides the maintenance of consistency in baking and roasting activities. This is installed in commercial oven units where it is mounted in the bottom or back part and serves as the major source of heat needed to carry out successful and controlled cooking process.

More Information:

  • BLODGETT:20321 ,33244

Step1: Disconnect and lock out electrical power.

Step2: Remove interior oven panels to access the heating element.

Step3: Label and disconnect wires from the screw terminals.

Step4: Unfasten mounting hardware and remove the element assembly.

Step5: Install the replacement element, secure terminals tightly, reassemble panels, and test heating performance.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Blodgett 33244 1-3PH Element Assembly?

    Inspect the heating element regularly for cracks, burn marks, or loose screw terminals that may affect electrical performance. Tighten terminal connections to ensure stable power delivery and prevent overheating. Clean surrounding areas to remove grease buildup that can cause insulation breakdown or hot spots. Always disconnect power and allow the oven to cool before performing maintenance for safety.

  • What are common issues with the Blodgett 33244 1-3PH Element Assembly?

    • Element fails to heat evenly.
    • Burnout or short-circuiting.
    • Loose or corroded screw terminals.
    • Visible cracks or warping of the element.
