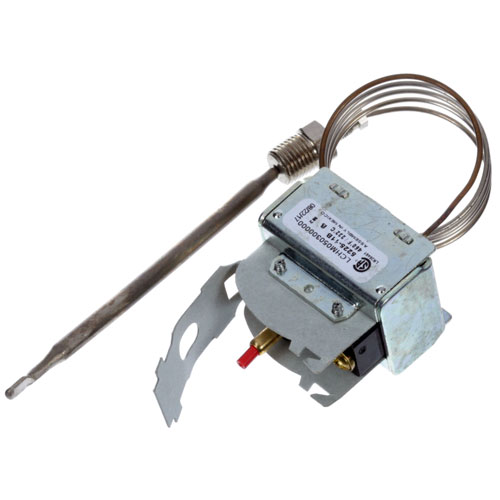

Anets PP10084 Fryer Safety Thermostat LCHM 1/4" X 4-7/8" 30"Cap

SKU: PP10084 1-PP10084 Brand:
Anets
Availability:
In Stock
(5)
$109.03 Price reduced from $210.00
Save $100.97
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Type - Lchm W/Manual Reset ] [ Temp 450 Fixed ] [ Bulb
  • 1/4 X 4-7/8 Nickel ] [ Cap 30 ] [ Size 1/4 Stuff Box
  • Nickel ] [ Brkt 3 ]
  • Dynamic Cooking Systems Fryer Series: F, Fsf
  • Pitco Fryer Gas Fryers.

Description

The Anets PP10084 Safety Thermostat is a system used to control and monitor the temperature of oil in commercial fryers to ensure that the heating is done correctly. It is mounted in the control part of the fryer and it detects the temperature variation and cuts off power when the heat is higher than the limit set. This operation helps to avoid overheating and ensures a stable cooking performance. The thermostat is compatible with fryers with LCHM systems, which are connected to the electrical circuit to ensure accurate temperature control during the process, and safe and stable thermal control in the workplace.

Dimensions:

  • Weight: 0.7 lbs
  • Length: 7.5 in
  • Height: 1.5 in
  • Width: 5.25 in

This Part Fits the Following Models

151 models
Anets 14GS Dynamic Cooking Systems F Dynamic Cooking Systems FSF Pitco 12 Pitco 12C Pitco 12CSS Pitco 14 Pitco 14B-C Pitco 14C+S Pitco 14CBU-CV Pitco 14R Pitco 14R-CV Pitco 14RS-HHQ Pitco 14S Pitco 14S-CV Pitco 14UFM Pitco 14UFM WITH UNDER FRYER FILTER MACHINE Pitco 18 Pitco 18-2WKSUFM Pitco 18S Pitco 18UFM WITH UNDER FRYER FILTER MACHINE Pitco 18WKS Pitco 20F Pitco 2-14S-C/UFM Pitco 24P Pitco 24RUFM Pitco 2-SG14C-S/FD Pitco 2-SG14-S/FD Pitco 3-14S-C/UFM Pitco 34FF Pitco 34P Pitco 35C+ Pitco 35C+D Pitco 35C+S Pitco 3-SG14-S/FD Pitco 3-SG14S-C/FD Pitco 3SSH75RSSTC-S-FD Pitco 40C+ Pitco 45C Pitco 45C+D Pitco 45C+S Pitco 4SSH75CSFD Pitco 4SSH75RSSTC-S-FD Pitco 5SSH75CSFD Pitco 65C Pitco 7 Pitco 7UFM WITH UNDER FRYER FILTER MACHINE Pitco ALL GAS MODELS Pitco AW-SG14R Pitco AW-SG14R-2 Pitco AW-SG14R-3-FD Pitco AW-SG14R-4-FD Pitco AW-SGF14R Pitco BK-SG14RS-PCFM Pitco BKSSH60W Pitco CKSSH55C Pitco CKSSH60WC Pitco DD24RUFM Pitco E24 Pitco E24FF Pitco E34 Pitco E34FF Pitco E400 Pitco E400T Pitco E500D Pitco F14 Pitco F18 W/BUILT-IN FRY STATION & FILTER PUMP CABINET Pitco FBG18 Pitco FBG24 Pitco LJ-FBG18 Pitco LJ-FBG24 Pitco LJ-FBGD18 Pitco LJ-FBGD24 Pitco MGII Pitco PE14D Pitco PG14 Pitco PG14D Pitco PG14D-C Pitco PG14D-CM Pitco PG14DSS-TM Pitco PH-SG14R Pitco PH-SG14R-2 Pitco PH-SG14R-3 Pitco PH-SG14R-4 Pitco PH-SGF14R Pitco Pitco Pitco PM14 Pitco PR14 Pitco PR14S-CV Pitco RTE14 Pitco RTG14-HHJ Pitco SFSG14 Pitco SFSG14C-S Pitco SFSG14R Pitco SFSG14RS Pitco SFSG14S Pitco SFSG14T Pitco SFSG14TS Pitco SFSG18 Pitco SFSG18S Pitco SFSG6H Pitco SFSSH55R Pitco SFSSH55T Pitco SFSSH55TR Pitco SFSSH60 Pitco SFSSH60R Pitco SFSSH60W Pitco SFSSH60WR Pitco SFSSH75 Pitco SFSSH75R Pitco SG14 Pitco SG14DI Pitco SG14-JS Pitco SG14R Pitco SG14RDI Pitco SG14RS Pitco SG14S Pitco SG14S-D Pitco SG14T Pitco SG14TDI Pitco SG14TS Pitco SG18 Pitco SG18C-S Pitco SG18DI Pitco SG18F Pitco SG18-JS Pitco SG18S Pitco SG18S-D Pitco SGC Pitco SGF18 Pitco SGH50 Pitco SGM1824 Pitco SGM24 Pitco SGM34 Pitco SGSEBNB-14 Pitco SGSEBNB-18 Pitco SRTG14 Pitco SSH55 Pitco SSH55-2FD Pitco SSH55SSTC-2FD Pitco SSH60 Pitco SSH60C-S/FD Pitco SSH60W/C-S/FD Pitco SSH75 Pitco SSH75RS Pitco SSHLV14 Pitco SSHLV184 Pitco TB-SG14 Pitco TB-SG14R Pitco TB-SGF14 Pitco VF35
Showing of 151.0

DYNAMIC COOKING SYSTEMS:

13245 DCS13245

PITCO:

P5047210 PTP5047210 PTPP10084

SOUTHBEND:

1199571

U-LINE:

5225-109 5225-112 LCH45-024-00 LCHM050300000

Step1: Turn off the gas and electrical power to the fryer.

Step2: Allow fryer to cool completely before servicing.

Step3: Remove the access panel and disconnect thermostat wiring.

Step4: Carefully remove the sensing bulb and mounting hardware.

Step5: Install a new thermostat and secure the sensing bulb properly.

Step6: Reconnect wiring, restore power and gas, and test the safety shutoff.

  • What maintenance is required for the Anets PP10084 Safety Thermostat?

    Regularly inspect the thermostat for corrosion, frayed wires, or loose connections. Clean gently with a dry cloth to remove grease buildup. Test functionality periodically to ensure accurate temperature control, and always follow safety precautions when the fryer is powered.

  • What are common issues with the Anets PP10084 Safety Thermostat?

    • Failure to shut off at high temperatures
    • Tripping too frequently or failing to trip
    • Loose or damaged wiring
    • Sensor or capillary tube leaks.
