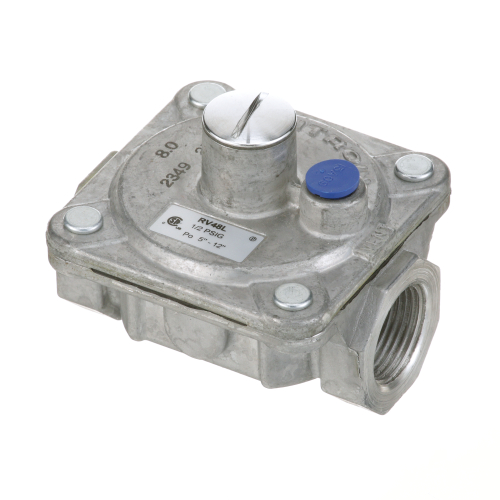

Jade Range 4613400000 Gas Pressure Regulator 3/4" LP

SKU: 4613400000 Brand:
Jade Range
Availability:
In Stock
(0)
$32.63 Price reduced from $44.60
Save $11.97
Have a Question? +1 (866) 863-0907 / (630) 326-8602

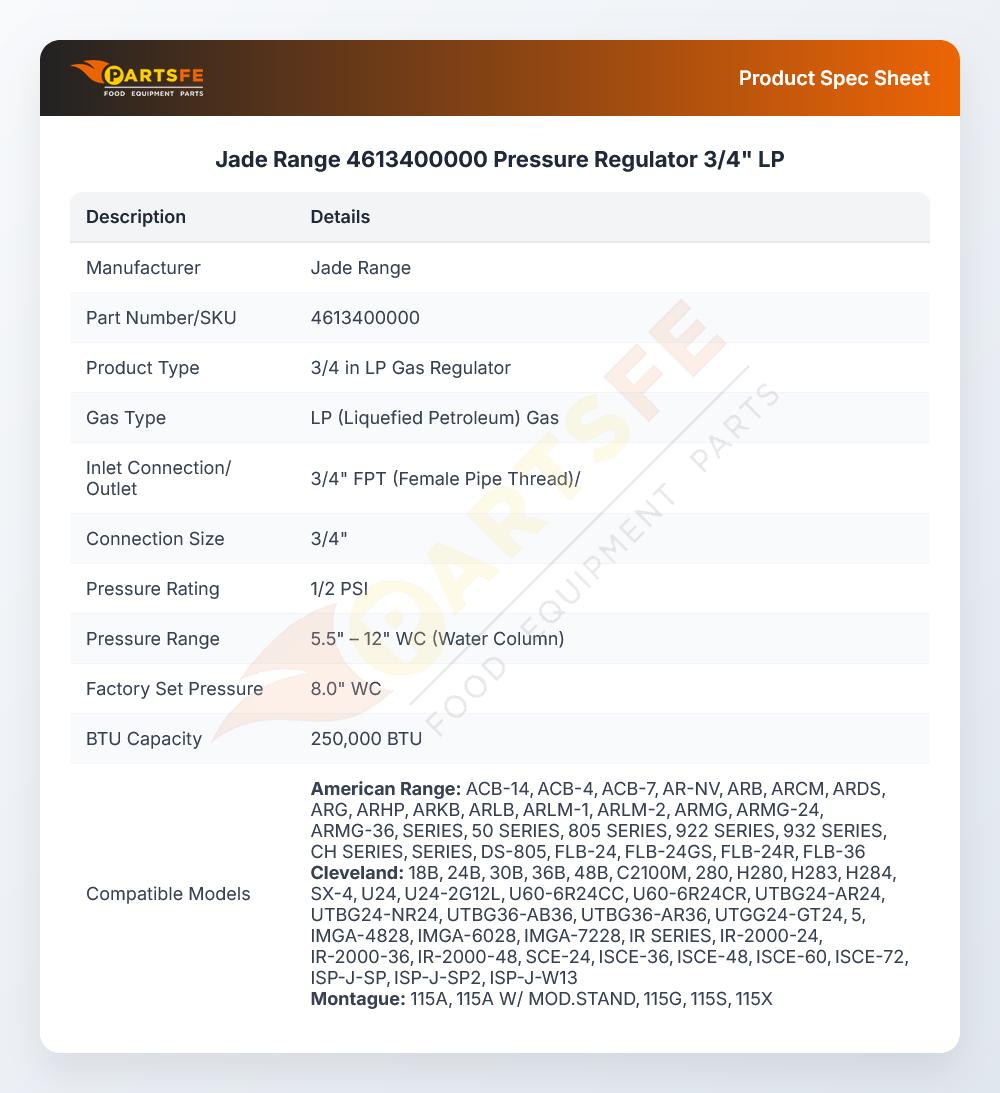

Specifications:

Attribute Details
Lp Gas, 3/4" Fpt Gas In/Out, 5.5" - 12" Wc
1/2"Psi, 250,000 Btu, Maxitrol Rv48L-66-0033 Preset At
Factory To 8.0
American Range
Bakers Pride Oven Where Applicable.
Blodgett Oven Series 900, 999, 1000, Bcg, Fa, Gzl.
Garland Griddle Series Gd
Imperial Oven Ir,Ihr
Keating Fryer Bb, Cc & Ts 18" & Up.
Southbend
Oven Series 300.
Griddle Series Sg Counter Top
Vulcan Broiler, Grill, Warmer Where Applicable.
Fryer 7594G, Oven Series 7000
Range 24L, 36L/Lc, 48L/Lc, 148L/Lc, 60L/Lc/Lcc, 161L/Lc,

Description

The Jade Range 4613400000 Gas Pressure Regulator is a spare component that is used to control the flow of liquefied petroleum gas in a commercial cooking system. Normal operation involves the regulator to regulate inlet pressure so that it can keep the gas supply to the burners constant. It can be installed directly with the gas supply on compatible ranges and is connected directly to the manifold to assist in maintaining a steady flow of ignition and flame control. In practice, the part is utilized in the installation or service process to rectify the level of pressure to prevent.

More Information:

  • AMERICAN RANGE:10481 ,A80011||BAKERS PRIDE:AS-M1009A ,BKPM1009A ,M1009A ,M1009X||BLODGETT:10248 ,10441 ,11504 ,BL10441 ,BL11504 ,Z1160206||CECILWARE:GML203A ,GML203F ,L203A ,L203F||CLEVELAND:2127500 ,KE54618-1||DORMONT:R48P42-0512-10 ,R48P42-0512-10R||GARLAND:1019004 ,1019011 ,2127500 ,228052-14 ,4516401 ,G01740-2 ,GL1019004 ,GL1019011 ,GL2127500||GRINDMASTER:L203A||GROEN:003548 ,101570B ,3548 ,GR3548 ,Z003548||HOBART:00-408279-00003 ,00-408279-00010 ,00-408279-00021 ,00-408279-00023 ,108279-10 ,108279-21 ,108279-23 ,108279-3 ,20025 ,408279-00003 ,408279-00010 ,408279-00021 ,408279-00023 ,408279-10 ,408279-21 ,408279-23 ,408279-3 ,720025 ,720065||IMPERIAL:1051 ,38734 ,IMP1051||JADE RANGE:4613400000||LANG:80501-05 ,LG80501-05||MAGIKITCH'N:2701-0028300 ,270100283 ,27010028300 ,37LP ,MK2701-0028300 ,MK270100283 ,MK27010028300 ,MK37LP ,MKRP1010 ,RP1010||MONTAGUE:1040-5 ,2140-7 ,43B ,MON1040-5 ,R96-2||RANDELL:RDLR-06D ,RDLR06A3/4||RANKIN DELUX:RDLR-06D ,RDLR06A3/4||ROYAL RANGE:1619||SOUTHBEND:1160173 ,1160206||STAR MFG:2J-39284 ,2J-Z3199 ,2J-Z7092 ,2J39284 ,59284 ,WS-59284||STERO:WEL2J-39284 ,WEL2J39284||VULCAN HART:00-408279-00003 ,00-408279-00010 ,00-408279-00021 ,00-408279-00023 ,108279-10 ,108279-21 ,108279-23 ,108279-3 ,20025 ,408279-00003 ,408279-00010 ,408279-00021 ,408279-00023 ,408279-10 ,408279-21 ,408279-22 ,408279-23 ,408279-3 ,720025 ,720065 ,VH108279-3 ,VH408279-21 ,VH408279-22 ,VH408279-3

Step1: Shut off the LP gas supply and unplug the appliance before beginning installation.

Step2: Remove the existing regulator and inspect the gas line for debris or damage.

Step3: Apply approved LP gas thread sealant to the pipe threads only.

Step4: Install the new regulator with the directional flow arrow facing the appliance.

Step5: Tighten all fittings securely while avoiding excessive force.

Step6: Turn the gas supply back on and test every connection with a leak-detection solution before operating the range.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Jade Range 4613400000 Pressure Regulator?

    Inspect the regulator periodically for leaks, corrosion, or damage to the body and fittings. Ensure all connections are tight and free from grease or debris. Check that gas pressure remains consistent during operation. Shut off the gas supply before any inspection or servicing.

  • What are common issues with the Jade Range 4613400000 Pressure Regulator?

    • Fluctuating gas pressure causing uneven burner output.
    • Gas leakage from worn internal components or loose joints.
    • Blocked regulator restricting gas flow.
    • Failure to maintain proper outlet pressure under load.
