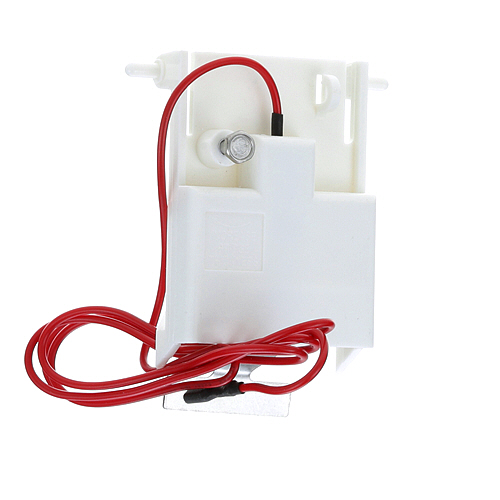

Manitowoc 7627813 Ice Machine Thickness Probe 4" 3-1/4"

SKU: 7627813 Brand:
Manitowoc
Availability:
In Stock
(0)
$95.01 Price reduced from $178.94
Save $83.93
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Description

The Manitowoc 7627813 Ice Machine Thickness Probe controls the amount of ice produced by detecting the amount of ice accumulated on the evaporator surface. The probe senses contact as the ice increases and transmits a signal that activates the next step of the machine cycle. It is fixed in the evaporator compartment of specific ice machines, and is projected into the ice-forming space. The probe has a total length of 4" and 3-1/4" active sensing. Its structure allows proper timing of the cycle depending on the ice thickness.

More Information:

Manufacturer Name: Manitowoc
Product Number: 7627813
OEM Part Number: 7627813
Product Description: Ice Thickness Probe, 4" 3-1/4" Ovverall;Manitowoc Ice Machine Series: Q, Except Q130,Q210, Q270.;Q Series Ending In P (Prison) & C, Dual C Units.;Series: B, J.
Similar Models:76-2781-3 - Manitowoc
Dimensions:
Length:5in/12.7cm
Width:4.5in/11.43cm
Height:1in/2.54cm
Weight:0.11lbs/49.9g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from {{config path='general/store_information/name'}}!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at {{config path='general/store_information/phone'}} or {{config path='trans_email/ident_support/email'}}

  • MANITOWOC:76-2781-3 ,7627813 ,MAN76-2781-3 ,MAN7627813

Step1: Turn off and unplug the unit to prevent electrical hazards.

Step2: Access the probe area by removing the front or top panel.

Step3: Detach the old probe from its bracket and unplug connections.

Step4: Position the replacement probe correctly against the evaporator.

Step5: Secure it firmly and reconnect all electrical leads.

Step6: Reassemble panels, power on, and check ice formation consistency.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Manitowoc 7627813 Ice Thickness Probe?

    Regularly inspect the probe tip for mineral buildup or debris that could affect readings. Ensure electrical connections are secure and the probe is properly seated. Test measurement accuracy periodically and clean gently with a non-abrasive solution.

  • What are common issues with the Manitowoc 7627813 Ice Thickness Probe?

    • Inaccurate ice thickness readings.
    • Probe failing to detect ice consistently.
    • Intermittent electrical signal.
    • Loose mounting is affecting measurements.
