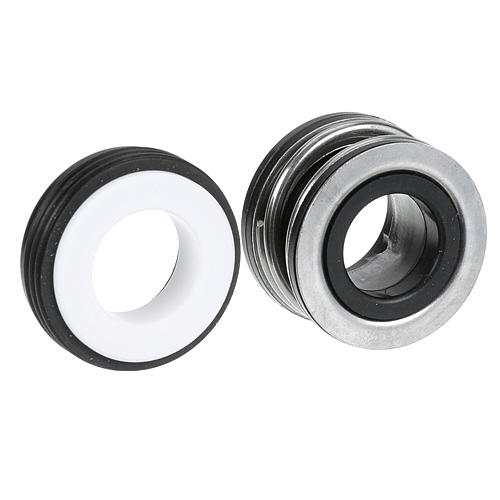

Jackson 5330-002-34-22 Dishwasher Pump Seal 5/8" DIA

SKU: 5330-002-34-22 Brand:
Jackson
Availability:
In Stock
(0)
$68.40 Price reduced from $113.66
Save $45.26
Have a Question? +1 (866) 863-0907 / (630) 326-8602

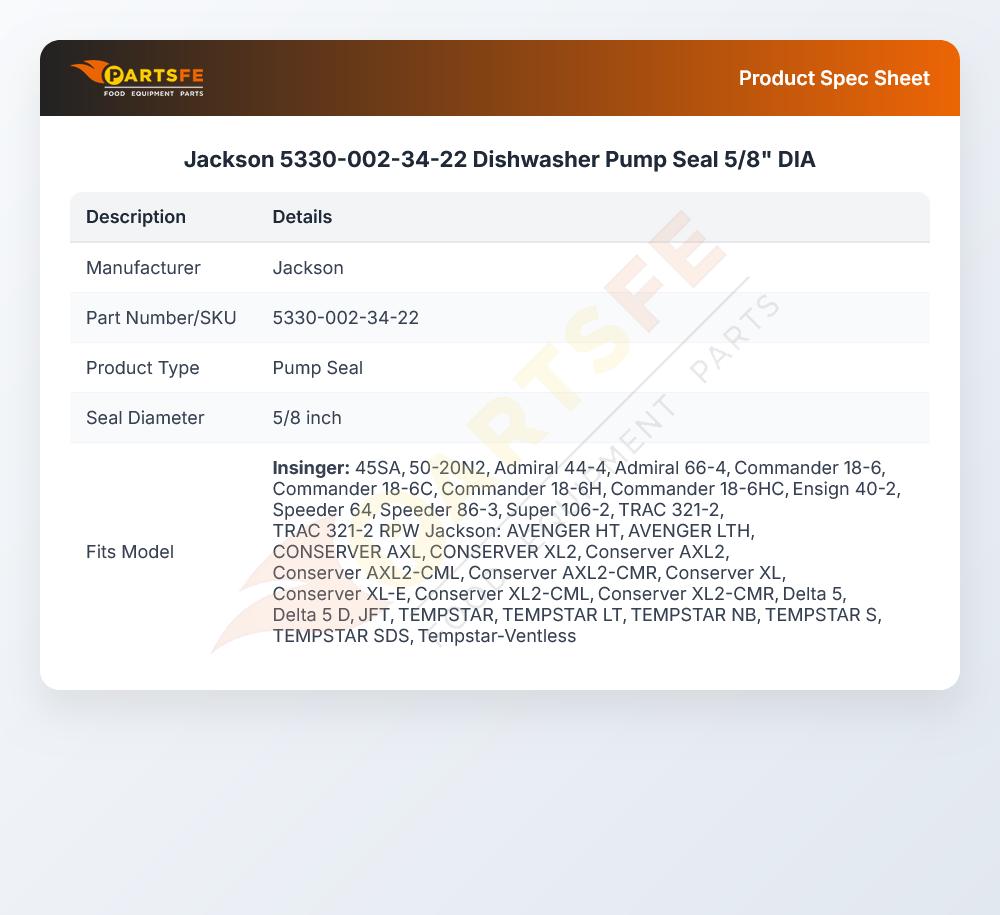

Specifications:

Attribute Details
Pump Seal 5/8" Dia.
Adamation Diswasher Used On "Worthington" Pumps Only.
Champion Diswasher Series L33, Fw60
Jackson Diswasher Jpx 300

Description

The Jackson 5330-002-34-22 Dishwasher Pump Seal Kit 5/8" DIA is the replacement part that can be used in commercial and residential dishwashers. It acts as a sealant between the pump housing and the motor shaft to avoid leakage of water when in operation. It is installed directly on the pump assembly to keep the integrity of the dishwasher circulation system intact so that the water flow and pressure are correct. This seal kit helps to maintain the stable work of the pump and prevents the mechanical of the pump by keeping the pump out of the fluid and helps to provide the stable functioning of the appliance during the daily cleaning process.

More Information:

  • ADAMATIC:55-6301-350||CHAMPION:106467||INSINGER:D-2534 ,D2-534 ,D2534||JACKSON:05330-002-34-22 ,5330-002-34-22 ,53300023422

Step1: Disconnect the power and water supply before servicing.

Step2: Access the pump assembly within the dishwasher.

Step3: Disassemble the pump housing carefully.

Step4: Remove the worn seal from its position.

Step5: Install the new seal correctly.

Step6: Reassemble the pump components securely.

Step7: Restore water and power supply.

Step8: Check for leaks during operation.
