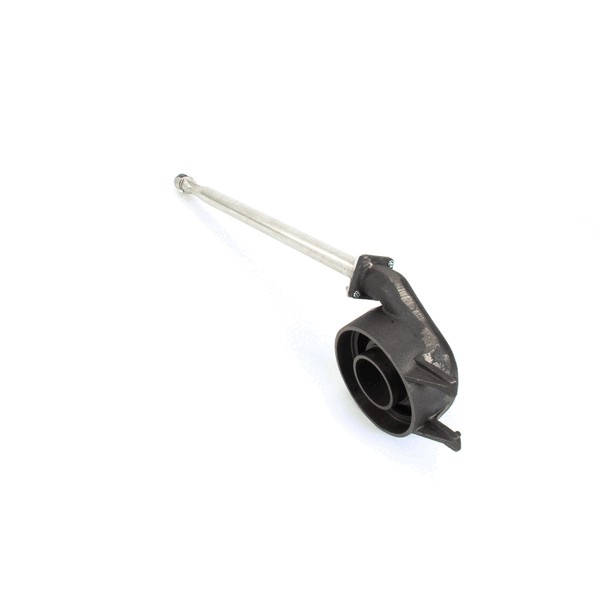

Southbend 1179241 Range Rear Burner & Venturi Assembly 40K
$625.12
Price reduced from
$673.62
Specifications:
| Attribute | Details |
|---|---|
| Cast Iron Rear Burner W/ Steel Venturi, Head Right. | |
| [ 26" Od ] Ci/Steel , W/ Air Shutter # 26-1863, | |
| 5-1/2" Round Opening For Burner Cap # 24-1083 ( Not | |
| Included), Rear Venturi Only (1165741) | |
| For Burner Head Cap Use # 24-1083 | |
| For Burner Drip Cover Use # 24-1228 | |
| Southbend Range 40,000 Btu 4 Burner Units | |
| Lgr36A-Xx, Lgr36C-Xx, Lgr36D-Xx, Lgr36N-Xx, P12C-B, P12N-B, | |
| P16C-X, P16N-X, P32A-Bbb, P32A-Bbb-Su, P32A-Xg, P32A-Xh, | |
| P32A-Xh-Re, P32A-Xt, P32A-Xx, P32C-Bbb, P32C-Bbb-Su, | |
| P32C-Xg, P32C-Xh, P32C-Xh-Re, P32C-Xt, P32C-Xx, P32D-Bbb, | |
| P32D-Bbb-Su, P32D-Xg, P32D-Xh, P32D-Xh-Re, P32D-Xt, P32D-Xx, | |
| P32N-Bbb, P32N-Bbb-Su, P32N-Xg, P32N-Xh, P32N-Xh-Re, | |
| P32N-Xt, P32N-Xx, P48A-Bbbb, P48D-Bbbb, P48N-Bbbb |
Description
The Southbend 1179241 Rear Burner and Venturi Assembly is a gas part that is compatible with a commercial range. This assembly has a rated capacity of 40,000 BTU and supplies gas and air to the burner at the right proportion to flames. It is mounted at the rear burner position of the range and it is connected directly to the gas manifold. The venturi section controls all the airflow assisting in keeping the heat the same throughout cooking. This element is usually found in commercial kitchens that need consistent burner operation to perform preparation, boiling and other high-temperature cooking operations.
More Information:
- SOUTHBEND:1179241
