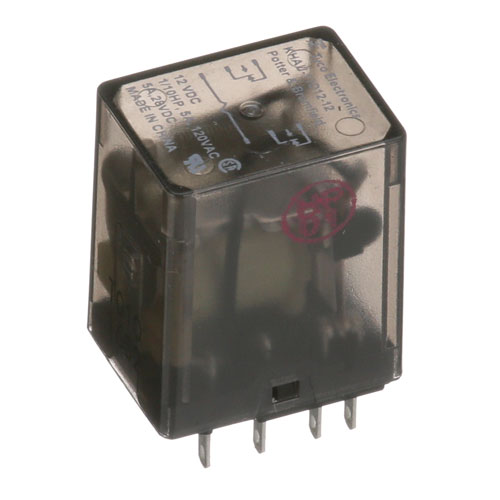

Frymaster 8076084 Latch-Valve Relay DPDT 120V

SKU: 8076084 Brand:
Frymaster
Availability:
In Stock
(0)
$36.15 Price reduced from $51.58
Save $15.43
Have a Question? +1 (866) 863-0907 / (630) 326-8602

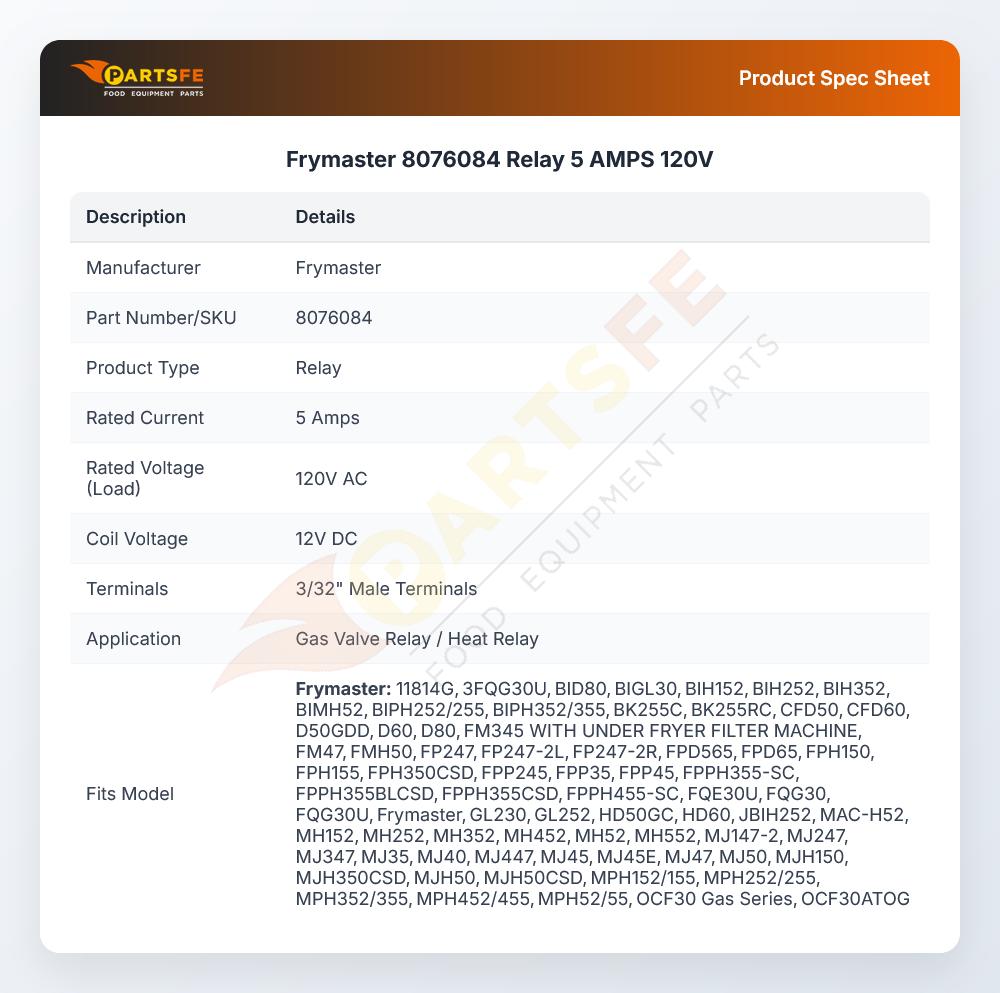

Specifications:

Attribute Details
Relay, [5 Amps] [120V ] [ 3/32" Male
Terminals], 12Vdc, Gas Valve Or Heat.
Frymaster
Computer Magic Ii & Iii, Latch Valve Relay Or Heat Relay
Fryer Bimh-(14,52), Fph250Sd, Fph450Csd, G18Fb,
G24Fb, Gl(18Fb,24Fb), H(14,17, 22,214), Mach52,
Mj45E, Mjcfe W/Computer Magic, Mjh50.

Description

The Frymaster 8076084 Relay Latch-Valve DPDT 120V switches are electrical circuits that reverse the position of the internal contacts. These are the alternate positions and stays, and the current is sent to the correct load. This is a relay fitted in the electrical box of suitable cooking equipment and is attached to the chassis or the control panel. It connects with the wiring harness of the appliance to act upon components on control signals sent by switches, thermostats, or electronic boards.

More Information:

  • DEAN:807-0833 ,807-6084 ,8070833||FRYMASTER:807-0833 ,807-6084 ,8070833 ,8076084 ,FM807-0833 ,FM807-6084 ,FM8070833 ,FM8076084

Step1: Disconnect power to the appliance before accessing internal components.

Step2: Open the control panel to locate the relay.

Step3: Disconnect the wiring from the existing relay.

Step4: Remove it from its mounting base.

Step5: Install the new relay in position.

Step6: Reconnect wiring to the correct terminals.

Step7: Close the panel and restore power.

Step8: Test for proper electrical switching.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Frymaster 8076084 Relay?

    Inspect the relay periodically for signs of damage, overheating, or dust accumulation. Ensure all wiring connections are tight and free from corrosion. Test the relay’s switching operation during routine equipment checks. Always disconnect power before servicing electrical components.

  • What are common issues with the Frymaster 8076084 Relay?

    • Relay failing to switch on or off.
    • Contacts are sticking or not connecting properly.
    • Intermittent electrical connection.
    • Overheating or burned relay contacts.
