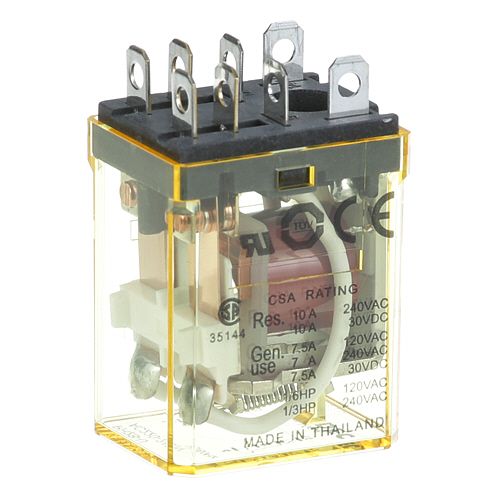

Ice-O-Matic 9101084-02 Ice machine Relay

SKU: 9101084-02 Brand:
Ice-O-Matic
Availability:
In Stock
(0)
$48.57 Price reduced from $58.21
Save $9.64
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Relay, 220-240V, 2 Pole
Ice-O-Matic C106, C135, C136, C185, C186, C25, C35, C45,
C66, Cf1106, Cmf2306, Ec1006, Ec1406, Ec1406B2, Ec1806,
Ec1806B2, Ec2106B1, Ec806, Emf1106, Emf2306, Emf800,
F/Mf1008, F/Mf700, Gc305, Gc555, Ice0305, Ice0305A,
Ice0305W, Ice0325, Ice0405, Ice0405A, Ice0405W, Ice0406,
Ice0406A, Ice0406W, Ice0525, Ice0605, Ice0605A, Ice0605R,
Ice0605W, Ice0606, Ice0606A, Ice0606R, Ice0606W, Ice0805,
Ice0806, Ice0806-A, Ice1005, Ice1006, Ice1007, Ice1405,
Ice1405A, Ice1405A3, Ice1405R, Ice1405R3, Ice1405W,
Ice1405W3, Ice1406, Ice1406A, Ice1406A3, Ice1406R,
Ice1406R3, Ice1406W, Ice1406W3, Ice1407, Ice1407A,
Ice1407A3, Ice1407R, Ice1407R3, Ice1407W, Ice1407W3,
Ice1506, Ice1806V3, Ice1807V3, Ice2005, Ice2106V3,
Ice2107V3, Iceu205, Iceu206, Iceu225, Iceu226, Lp2306,

Description

Ice-O-Matic 9101084-02 Ice Machine Relay operates as a 220-240V, 2-pole part that controls electrical power distribution to preserve their smooth operational efficiency. This relay serves models ICE, EMF and EC series by distributing power to essential machine components for optimal performance. The relay ensures constant ice production by defending the system against electrical overloads. Its basic design enables a rapid installation process which makes it a convenient solution for ice-making system maintenance and upgrades. The part improves ice machine operational durability by being efficient and durable which results in extended equipment life and better system performance.

More Information:

  • ICE-O-MATIC:9101084-02

Step1: Disconnect power and unplug ice machine to secure from electric shock before accessing control panel.

Step2: Remove cover panel and locate old relay, noting wiring positions.

Step3: Carefully disconnect wiring harness and replace with new relay, ensuring tight connections.

Step4: Reinstall panel, restore power, and test ice machine operation for proper cycling.

Step5: Ensure all panels are secured and avoid touching electrical components during operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Ice-O-Matic 9101084-02 Relay?

    Ensure the ice machine relay connections remain tight and free from corrosion to prevent electrical arcing. Periodically inspect the component for signs of heat discoloration or carbon buildup during routine system cleanings. Proper airflow around the control box is vital to prevent overheating and ensure consistent electrical switching.

  • What are common issues with the Ice-O-Matic 9101084-02 Relay?

    • Pitted or welded contact points.
    • Coil failure preventing the circuit from closing.
    • Audible clicking without power delivery.
    • Intermittent ice production cycles.
