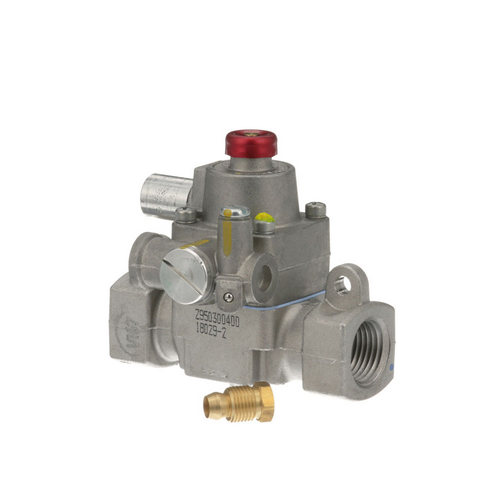

Blodgett 55127 Oven Pilot Safety Valve TS11 1/4" Tube Fitting
$301.74
Price reduced from
$604.92

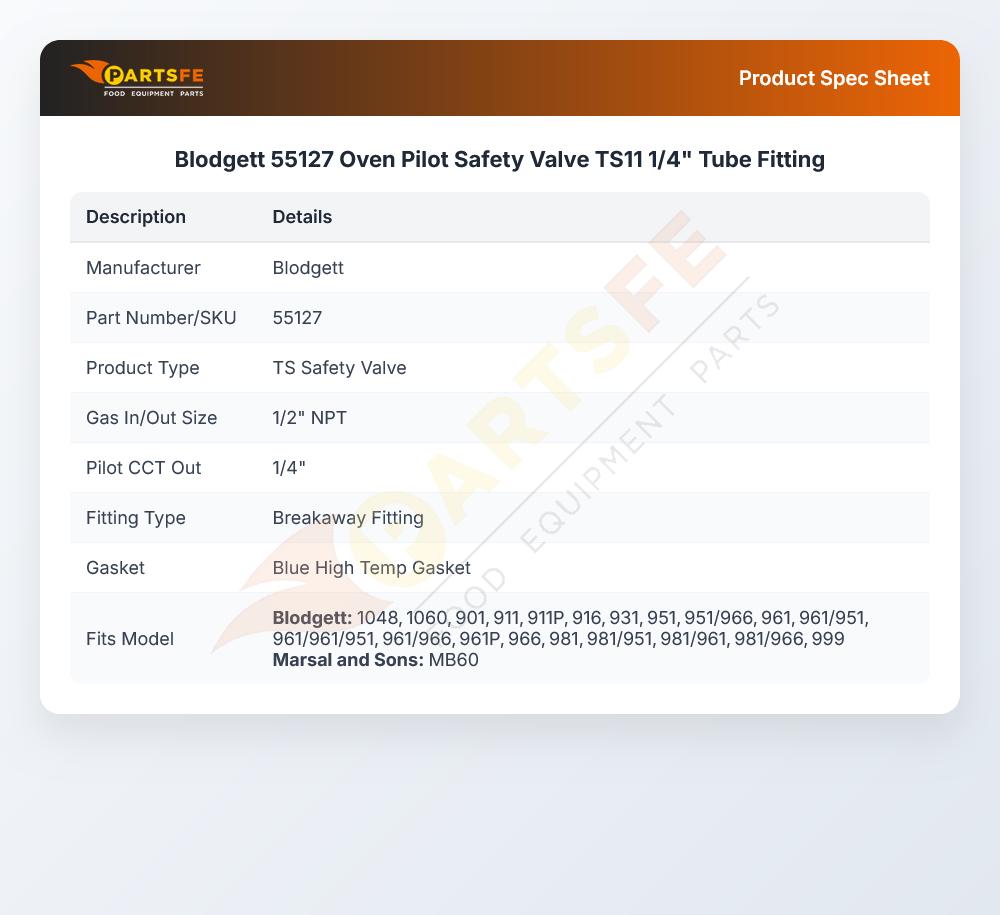

Specifications:
| Attribute | Details |
|---|---|
| 1/2" Npt Gas In/Out, 1/4" Pilot Cct Out Only | |
| Breakaway Fitting- With Blue High Temp Gasket |
Description
The Blodgett 55127 Pizza Oven Pilot Safety Valve 1/4" Tube Fitting TS11 works by regulating the gas flow to the pilot burner, and by automatically turning off the pilot flame in case the pilot flame is extinguished. It operates on a thermocouple connection which detects the presence of heat in the flame and maintains the valve open only when ignition is detected which provides appropriate regulation of the gas flow during operation. This safety valve is placed in the gas train assembly of the oven, which is connected to the pilot burner using a 1/4 inch tube to ensure safe and efficient use of the heating system of the oven.
More Information:
- BLODGETT:55127||MARSAL AND SONS:55127
Step1: Turn off the gas supply and unplug the oven to prevent fire hazards.
Step2: Remove the access panel to reach the existing pilot valve.
Step3: Disconnect the gas tubing and mounting screws from the old valve.
Step4: Position the new pilot safety valve and secure it with screws.
Step5: Reconnect the gas tubing carefully, ensuring tight, leak-free connections.
Step6: Restore gas supply, check for leaks, and test pilot ignition.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
Thank you! Your review has been submitted.
-
What maintenance is required for the Blodgett 55127 Pilot Safety Valve?
Periodically check the valve for proper seating and smooth operation. Inspect the tube fitting for leaks or looseness. Test the pilot function to ensure consistent ignition, and verify that gas flows freely without obstruction during operation.
-
What are common issues with the Blodgett 55127 Pilot Safety Valve?
- Pilot fails to ignite.
- Gas flow irregularities.
- Valve sticking or binding.
- Intermittent shutoff during operation.
