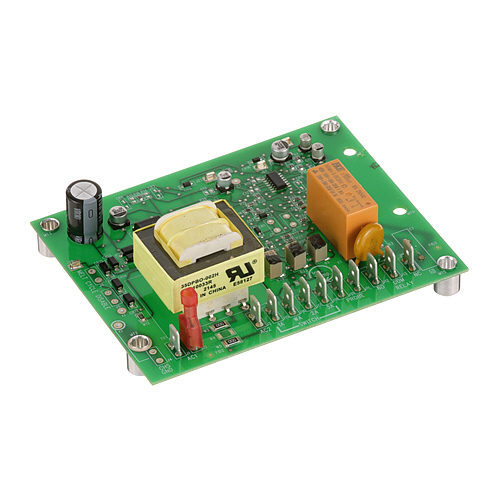

Southbend 1194639 Temperature Control Board 3 Position 120V

SKU: 1194639 Brand:
Southbend
Availability:
In Stock
(0)
$587.96 Price reduced from $1,126.36
Save $538.40
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Description

The Southbend 1194639 Temperature Control Board 3-Position 120V is an electronic control board used in commercial cooking equipment. It is designed to run on 120 volts and controls temperature levels in three positions. This is installed in the control compartment of the appliance, receives inputs from thermostats or sensors, and commands heating elements to reach desired temperatures. In commercial restaurants and institutional kitchens, it can be used as a central control point, which coordinates heat control and system reaction and maintains better performance.

More Information:

Manufacturer Name: Southbend
Product Number: 1194639
OEM Part Number: 1194639
Product Description: 3 Position Temperature Control;Southbend Range, Tvgs/12Wc, Tvgs/12Wc With P36n-Ttt
Similar Models:NONE
Dimensions:
Length:5in/12.7cm
Width:4in/10.16cm
Height:2in/5.08cm
Weight:0.45lbs/204.12g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from {{config path='general/store_information/name'}}!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at {{config path='general/store_information/phone'}} or {{config path='trans_email/ident_support/email'}}

  • SOUTHBEND:1194639 ,SOU1194639

Step1: Disconnect electrical power to the appliance and check zero voltage.

Step2: Remove access panel and note existing wiring connections for correct reinstallation.

Step3: Safely unplug the old solid state board, avoiding static discharge by grounding process.

Step4: Install the new control board in the same position and secure mounting screws firmly.

Step5: Reconnect all wiring terminals exactly as noted and inspect for loose connections.

Step6: Restore power and test the appliance operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Southbend 1194639 Solid State Board?

    Inspect all electrical connections regularly and ensure the board is securely mounted to prevent vibration damage. Keep the unit clean, dry, and free from grease or dust. Verify proper voltage supply and check for overheating or burnt components during service.

  • What are common issues with the Southbend 1194639 Solid State Board?

    • No power or complete board failure.
    • Intermittent ignition control malfunction.
    • Overheating causing shutdown or erratic operation.
    • Relay or component failure is the signal output.
    • Communication errors with connected ignition system.
    • Blown fuse or power surge damage.
