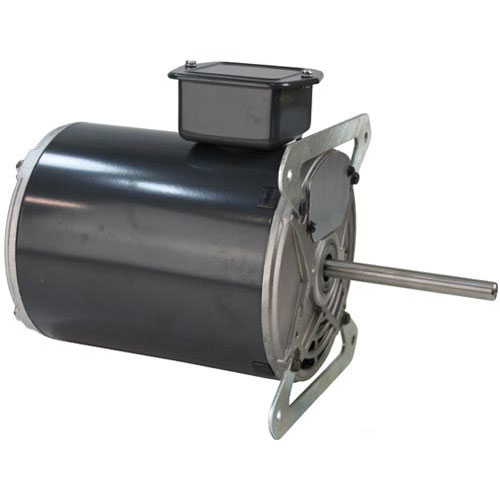

Southbend SOU1175567 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP
$589.30
Price reduced from
$763.94
Specifications:
| Attribute | Details |
|---|---|
| [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ] | |
| [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ] | |
| Frame 56Z, 2 Speed. | |
| [ 1/2" X 4-1/2" Shaft W/ 2 Flats] | |
| White Common | |
| Black Power To Fan Switch - Hi | |
| Red Power To Fan Switch - Lo | |
| Blue/Purple Or Brown/Brown To Centrifugal Switch. | |
| If Oven Does Not Have Centrifugal Switch Then | |
| Wire Together W/ Wire Nut. | |
| If Only Using For One Speed, Then Wire Nut Red Wire. | |
| Southbend | |
| Oven Series | 300,400,B,Bbb,Gb, Gs, Eh,P, Slgs |
Description
The Southbend SOU1175567 Motor 2-Flats CW 1-Pole, 7.2/4.5 AMP is an electric unit that can be used in commercial cooking equipment to drive such items as conveyor belts or internal fans. It turns clockwise and has a two-flat shaft to ensure a better fit to the correct drive couplings to provide the required torque to ensure consistent motion. The motor is installed in the mechanical assembly of the appliance and it is connected to the control circuitry and the drivetrain to facilitate the correct working of the foodservice kitchen
More Information:
- SOUTHBEND:1175567 ,1175571 ,1177452 ,1188523 ,1194780 OS MAKE LIST ,4440300 ,4440367 ,SOU1175567 ,SOU1175571 ,SOU1177452 ,SOU1188523 ,SOU4440367
