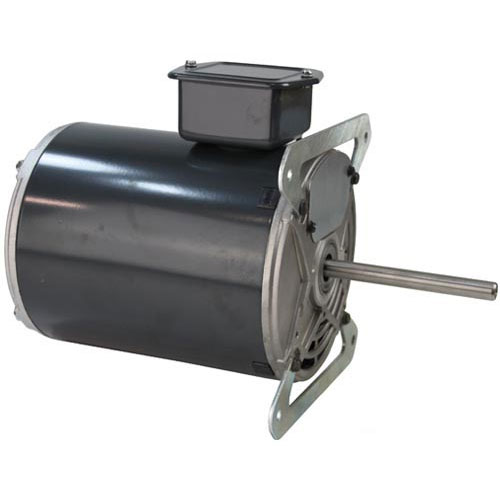

Southbend SOU1175571 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP

SKU: SOU1175571 Brand:
Southbend
Availability:
In Stock
(0)
$589.30 Price reduced from $763.94
Save $174.64
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
[7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
Frame 56Z, 2 Speed.
[ 1/2" X 4-1/2" Shaft W/ 2 Flats]
White Common
Black Power To Fan Switch - Hi
Red Power To Fan Switch - Lo
Blue/Purple Or Brown/Brown To Centrifugal Switch.
If Oven Does Not Have Centrifugal Switch Then
Wire Together W/ Wire Nut.
If Only Using For One Speed, Then Wire Nut Red Wire.
Southbend
Oven Series 300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend SOU1175571 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP is an electrical-to-rotational converter with a single-pole design, which turns a clockwise shaft with two flats to couple with. It rotates internal parts on a provided current rating to convey torque to other parts within the system when it is operational. The motor is generally mounted in the inside drive of the compatible commercial cooking appliances, attached to a fixed bracket or housing to fit in with fans, blowers or mechanical connections. It enables appliance operation to be controlled in rotation, and it connects with standard wiring and mechanical mounts of foodservice equipment.

More Information:

  • SOUTHBEND:1175567 ,1175571 ,1177452 ,1188523 ,1194780 OS MAKE LIST ,4440300 ,4440367 ,SOU1175567 ,SOU1175571 ,SOU1177452 ,SOU1188523 ,SOU4440367
