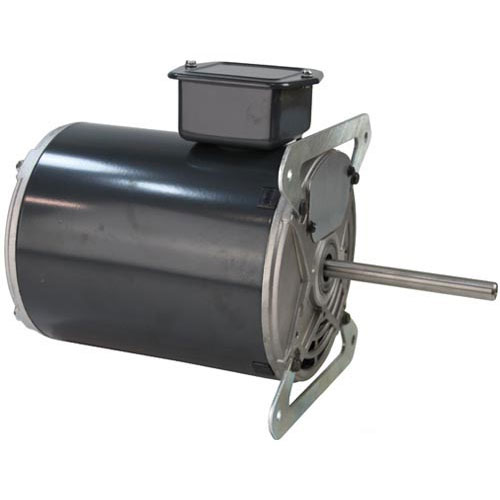

Southbend SOU1188523 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP

SKU: SOU1188523 Brand:
Southbend
Availability:
In Stock
(0)
$589.30 Price reduced from $763.94
Save $174.64
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
[7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
Frame 56Z, 2 Speed.
[ 1/2" X 4-1/2" Shaft W/ 2 Flats]
White Common
Black Power To Fan Switch - Hi
Red Power To Fan Switch - Lo
Blue/Purple Or Brown/Brown To Centrifugal Switch.
If Oven Does Not Have Centrifugal Switch Then
Wire Together W/ Wire Nut.
If Only Using For One Speed, Then Wire Nut Red Wire.
Southbend
Oven Series 300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend SOU1188523 Motor 2-Flats CW 1-Pole, 7.2/4.5 AMP is a part of the commercial cooking equipment that drives moving parts. It has a clockwise and a two-flat shaft design which fits well with compatible drive couplings to give the force needed to maintain uniform movement. The motor is installed in the mechanical assembly of the appliance and is linked to the control system and the motor assists the driven mechanism to operate correctly. It assists in efficient and consistent equipment operation in the professional kitchen setting.

More Information:

  • SOUTHBEND:1175567 ,1175571 ,1177452 ,1188523 ,1194780 OS MAKE LIST ,4440300 ,4440367 ,SOU1175567 ,SOU1175571 ,SOU1177452 ,SOU1188523 ,SOU4440367
