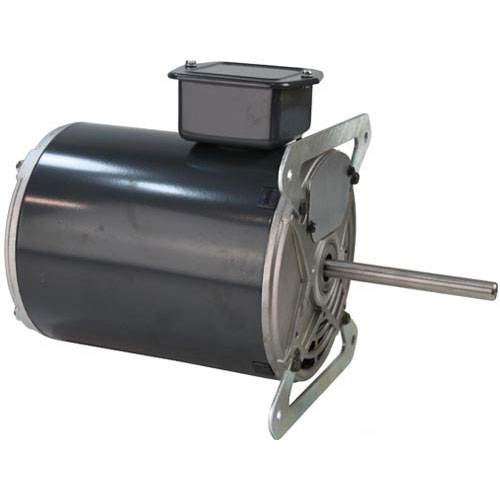

Southbend SOU4440367 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP

SKU: SOU4440367 Brand:
Southbend
Availability:
In Stock
(0)
$589.30 Price reduced from $763.94
Save $174.64
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
[7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
Frame 56Z, 2 Speed.
[ 1/2" X 4-1/2" Shaft W/ 2 Flats]
White Common
Black Power To Fan Switch - Hi
Red Power To Fan Switch - Lo
Blue/Purple Or Brown/Brown To Centrifugal Switch.
If Oven Does Not Have Centrifugal Switch Then
Wire Together W/ Wire Nut.
If Only Using For One Speed, Then Wire Nut Red Wire.
Southbend
Oven Series 300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend SOU4440367 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP is an electric motor that is designed to convert electrical power into rotational force in a single-pole design, rotating the shaft clockwise. It works through the control of current flow between 7.2 and 4.5 amps to ensure steady rotation as the two-flat shaft interface passes the torque to other parts. The motor is normally used on assemblies of compatible commercial kitchen equipment where controlled rotational movement is needed. In the two-flat shaft configuration, it is possible to safely couple it with gears or fans. It is built for constant use under electrical conditions.

More Information:

  • SOUTHBEND:1175567 ,1175571 ,1177452 ,1188523 ,1194780 OS MAKE LIST ,4440300 ,4440367 ,SOU1175567 ,SOU1175571 ,SOU1177452 ,SOU1188523 ,SOU4440367
