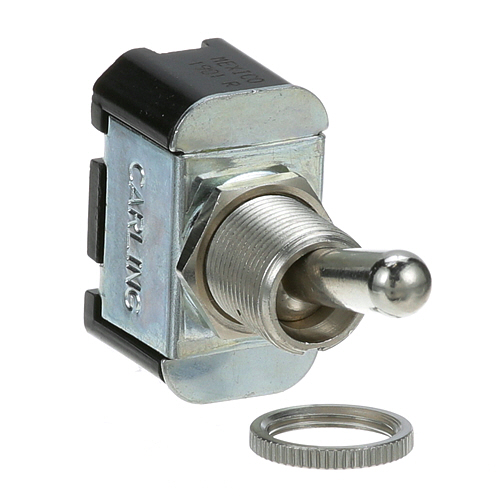

Bar Maid SWT-196 Washer On/Off Toggle Switch

SKU: SWT-196 Brand:
Bar Maid
Availability:
Out of Stock
(0)
$53.17 Price reduced from $69.06
Save $15.89
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
On/Off Toggle Switch, 10 Amp-240 Vac, 15 Amp-125 Vac,
3/4 Hp 120-240 Vac, 2 Screw Terminals
This Is Switch Only.
For Switch Assembly Order A-445 # 42-1690
Which Includes Rubber Boot And Hardware.
Barmaid Glass Washers
Groen Kettle Ah, Hh, Tdb
Jade Oven Series Jslb, Jsr.
Keating Fryer Lb-100 W/2Way Pump, Hb65 & Gas Fryer
W/Unit Of 4 Indicator Lights.

Description

The Bar Maid SWT-196 Washer On/Off Toggle Switch is an electrical part that is used to switch between two electrical circuits by opening or closing the connection when switched. It works by moving the lever by hand to either close or open the flow of electricity. This switch is fitted into compatible beverage or kitchen equipment panels and is held in place by the mounting hole using the washer. The toggle lever is easily operated manually. Its design is equivalent to the electrical terminal requirements of wiring integration.

More Information:

  • BAR MAID:SWT-196 ,SWT196||GROEN:007402 ,Z007402||JADE RANGE:200-246-000

Step1: Disconnect the equipment from electrical power before starting installation.

Step2: Remove the access panel to locate the faulty toggle switch.

Step3: Label and disconnect the screw terminal wires carefully.

Step4: Unscrew and remove the old toggle switch from the mounting hole.

Step5: Install the new switch securely and reconnect the wires to the correct terminals.

Step6: Reattach the panel, restore power, and test the switch for proper operation and safe performance.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Bar Maid SWT-196 On/Off Toggle Switch?

    Keep the toggle switch clean and free from dust or grease buildup to ensure smooth operation. Inspect terminals regularly for tightness and signs of corrosion. Proper maintenance ensures accurate electrical contact and reduces risk of failure or unsafe operation.

  • What are common issues with the Bar Maid SWT-196 On/Off Toggle Switch?

    • Loose or worn internal contacts causing intermittent operation.
    • Switch failing to stay in on or off position.
    • Electrical arcing or overheating under load.
    • Terminal corrosion or loose wiring connections.
    • Mechanical stiffness or reduced toggle response.
