Blodgett 41163 Gas Broiler Thermocouple 36" Long 20-30mV

SKU: 41163 Brand:
Blodgett
Availability:
In Stock
(0)
$18.68 Price reduced from $24.25
Save $5.57
Have a Question? +1 (866) 863-0907 / (630) 326-8602

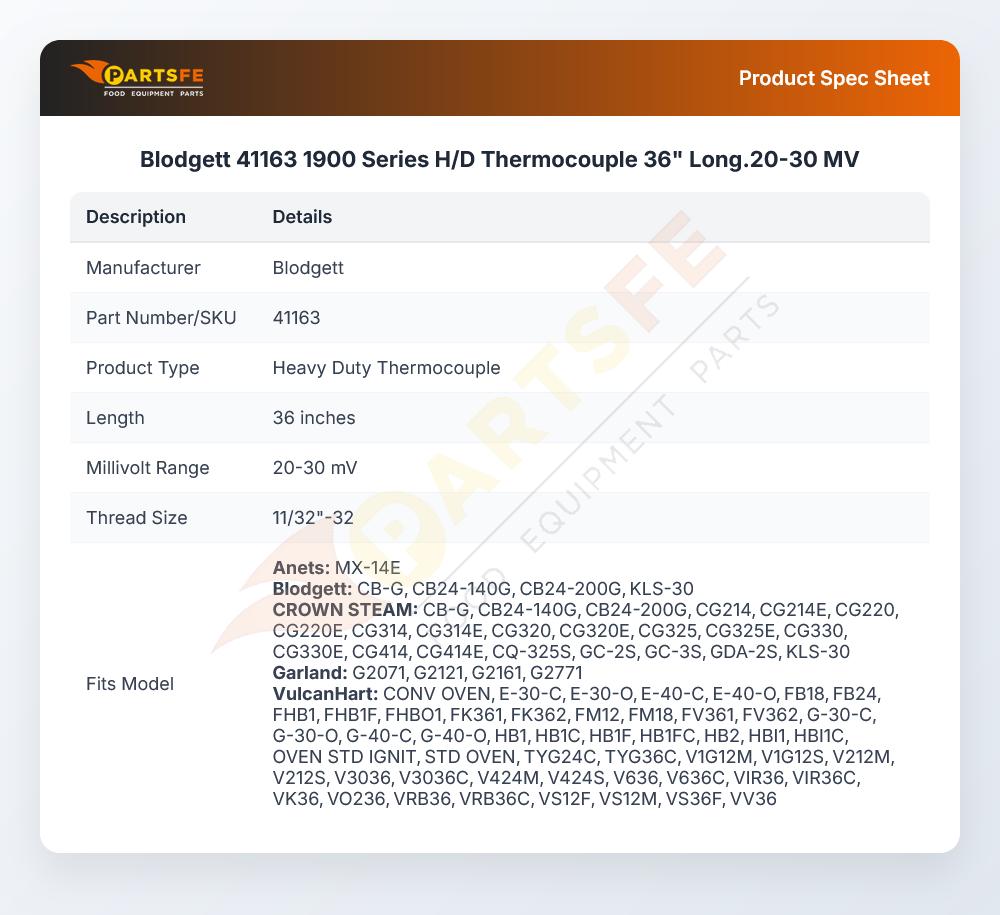

Specifications:

Attribute Details
1900 Series Heavy Duty Thermocouple 36" Long.20-30 Mv
Coaxial Thermocouple Threads = 11/32"-32
Anets Fryer 14Gs(U)
Garland Bake/Roast Deck Oven G2071, G2121, G2161, G2771
Market Forge
Steamer Where Applicable
Southbend Nodel?
Vulcan Hart Model?
Wolf Model F4-27

Description

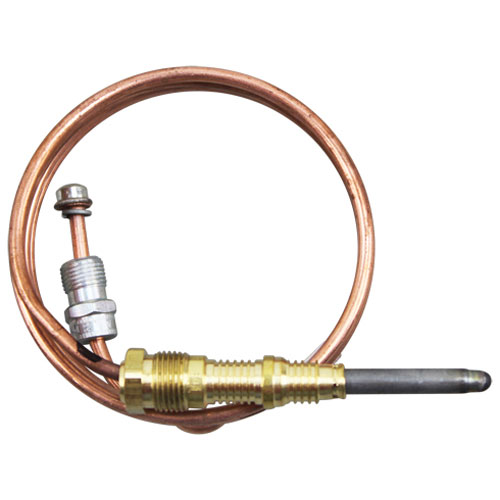

The Blodgett 41163 Gas Broiler Thermocouple 36" Long 20-30mV is a component that measures the temperature of equipment used in commercial cooking. It is gas-fired by producing a small electrical voltage that varies with the heat at the sensing tip. It is inserted between the pilot or burner assembly and the control module of compatible Series ovens and other appliances. It is a high-duty thermocouple and is applied in such applications where a length and voltage output are mostly required.

More Information:

  • ANETS:P8903-48||BLODGETT:41163||CROWN STEAM:6-36TB ,PE-145||GARLAND:1019436||HOBART:00-715005 ,00-880828 ,15005 ,18328 ,715005 ,718328 ,880828 ,HOB00-715005 ,HOB00-880828 ,HOB15005 ,HOB18328 ,HOB715005 ,HOB718328 ,HOB880828||MARKET FORGE:10-6048 ,97-5493 ,975493 ,MAR10-6048||PITCO:P8903-48||SOUTHBEND:1161521 ,6-36TB ,PE-145 ,SOU1161521 ,SOU6-36TB||U-LINE:1900-036||VULCAN HART:00-715005 ,00-880828 ,15005 ,18328 ,715005 ,718328 ,880828 ,VH00-880828 ,VH718328 ,VH880828

Step1: Turn off gas and power to the appliance for safety.

Step2: Remove the old thermocouple from the gas valve and pilot assembly.

Step3: Insert the new thermocouple into the pilot bracket securely.

Step4: Connect the thermocouple lead to the gas valve.

Step5: Ensure all connections are tight and test ignition.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Blodgett 41163 Thermocouple?

    Keep the thermocouple tip clean and check electrical connections. Ensure the sensor is properly aligned with the flame. Regular inspection ensures safe operation and accurate temperature sensing.

  • What are common issues with the Blodgett 41163 Thermocouple?

    • Applinace fails to ignite.
    • Sensor not detecting flame.
    • Loose or corroded wiring.
    • Tip misalignment affecting operation.
