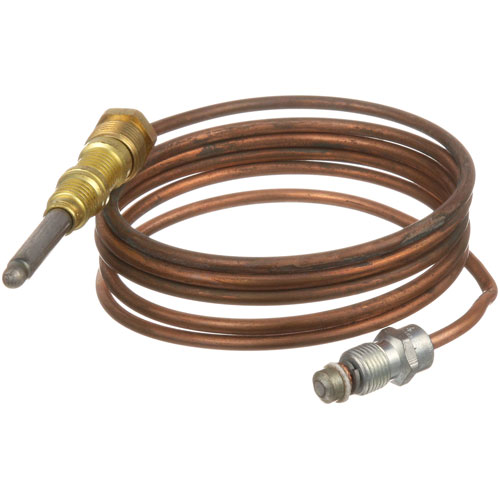

Southbend 1182565 Griddle Thermocouple 48''

SKU: 1182565 Brand:
Southbend
Availability:
In Stock
(0)
$29.83 Price reduced from $38.75
Save $8.92
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
1900 Series Heavy Duty Thermocouple 48" Long.20-30 Mv
Coaxial Thermocouple Threads = 11/32"-32
Market Forge Skillet Where Applicable
Southbend Hdg-(36, 36M, 36Re, 48, 48M, 48Re, 60, 60M, 60Re,
72, 72M, 72Re)
Vulcan Hart Heavy Duty Range/Oven Gh3/72, Gh3/72C, Gh3/72S,
Gh30, Gh30C,
Gh45, Gh45/72, Gh56, Gh56S, Gh6, Gh60, Gh60/45, Gh60/72,
Gh6045C, Gh60T, Gh60T/45, Gh60T/72, Gh6C, Gh6S, Gh6T45C,
Gh72, Gh72/45, Ghm3/72, Ghm30, Ghm30C, Ghm45, Ghm45/72,
Ghm56, Ghm6, Ghm60, Ghm60/45, Ghm60/72, Ghm60T, Ghm60T/45,
Ghm60T/72, Ghm72, Ghm72/45

Description

The Southbend 1182565 Griddle Thermocouple 48'' is a part that translates heat from the pilot flame into an electrical signal that keeps the gas valve open when working. Once the fire is lost, the signal is gone, and the flow of the propane is cut off to prevent the supply of the fuel. This is installed close to the pilot assembly within a component to detect the presence of flames. The length of 48 inches enables one to pass a route through the unit to access the control connection without alteration.

More Information:

  • HOBART:00-412788-00002 ,00-412788-00004 ,00-906955-00048 ,412788-00002 ,412788-00004 ,412788-2 ,412788-4 ,906955-00048 ,906955-48 ,HOB00-412788-00002 ,HOB00-412788-00004 ,HOB00-906955-00048 ,HOB412788-00002 ,HOB412788-00004 ,HOB412788-2 ,HOB412788-4 ,HOB906955-00048 ,HOB906955-48||MARKET FORGE:-10-4758 ,10-4758 ,MAR10-4758||SOUTHBEND:-1182565 ,1182565 ,SOU1182565||U-LINE:1900-048||VULCAN HART:-00-412788-00002 ,-00-412788-00004 ,-00-906955-00048 ,00-412788-00002 ,00-412788-00004 ,00-412788-00048 ,00-906955-00048 ,412788-00002 ,412788-00004 ,412788-00048 ,412788-2 ,412788-4 ,412788-48 ,906955-00048 ,906955-48 ,VH00-412788-00002 ,VH00-412788-00004 ,VH00-412788-00048 ,VH412788-00002 ,VH412788-00004 ,VH412788-00048 ,VH412788-2 ,VH412788-4 ,VH412788-48 ,VH906955-00048

Step1: Shut off gas and electrical power, then allow the appliance to cool completely before starting work.

Step2: Remove burner access panel and disconnect the existing thermocouple from the gas control valve.

Step3: Route the new thermocouple along the original path, ensuring the tip sits securely in the pilot flame area.

Step4: Tighten all connections to the valve and secure mounting hardware without over-torquing fittings.

Step5: Restore gas supply, relight pilot, and check stable flame along with proper safety shutdown response.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Southbend 1182565 Thermocouple?

    Inspect the thermocouple regularly for soot, corrosion, or loose threaded connections. Clean the sensing tip to maintain accurate flame detection and millivolt output. Ensure proper placement in the pilot flame. Always shut off the gas supply before servicing to avoid leaks.

  • What are common issues with the Southbend 1182565 Thermocouple?

    • Weak or fluctuating millivolt signal output.
    • Improper positioning in pilot flame.
    • Damaged or worn threaded connections.
    • Residue or corrosion affecting sensing accuracy.
