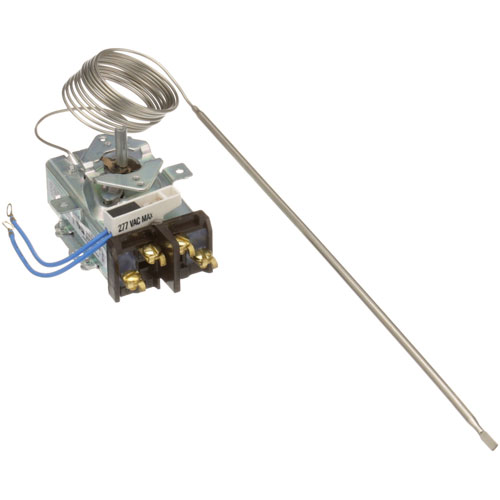

Lang 30402-09 Oven Thermostat Bulb 72" CAP 3/16" x 13"

SKU: 30402-09 Brand:
Lang
Availability:
In Stock
(0)
$363.95 Price reduced from $721.27
Save $357.32
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Thermostat, [ Type- D1/D18 ] [ Temp 200-550 ]
[ Bulb 3/16" X 13" ] [ Cap 72" ]
[ Dial To Use A252, A2765, # 22-1286 Off-550-200
Lang Oven

Description

The Lang 30402-09 Thermostat Bulb is used in ovens to control temperature. It has a 72” capillary tube with a 3/16” diameter and a 13” bulb that makes it easy to install and control the temperature. This thermostat is suitable for many Lang oven models and maintains the right temperature for cooking. Through its ability to detect changes in temperature, it is able to avoid overcooking or undercooking of food, making the food well cooked. Especially for restaurants and bakeries, this component ensures perfect uniformity of heating, increases the service life of the oven and its energy efficiency.

More Information:

  • LANG:2T-30402-09 ,30402-09||STAR MFG:2T-30402-09

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Lang 30402-09 Thermostat?

    Periodically inspect the bulb and capillary tube for damage, and ensure the terminal connections are tight and free of grease or corrosion. Calibrate or test the thermostat function during preventive maintenance to ensure accurate temperature control.

  • How do I install the Lang 30402-09 Thermostat?

    • Turn off and isolate power to the equipment.
    • Remove the control panel to access the existing thermostat.
    • Note and label all wiring terminals, then disconnect them from the old thermostat.
    • Remove the mounting screws and carefully extract the capillary and bulb.
    • Route the new 72″ capillary and 13″ bulb in the same path and mount the thermostat body.
    • Reconnect the wires to identical terminals.
    • Close up the panel, restore power, and test: set a temperature and verify using an external thermometer.

  • What are common issues with the Lang 30402-09 Thermostat?

    Common issues include inaccurate temperature reading if the sensing bulb is bent or misrouted, thermostat failure due to loose or corroded wiring, and mechanical wear from frequent cycling.

  • What are the operating limitations for the Lang 30402-09 Thermostat?

    This thermostat supports a temperature range from 200°F to 550°F, uses a 3/16″ × 13″ sensing bulb, and a 72″ capillary tube.
