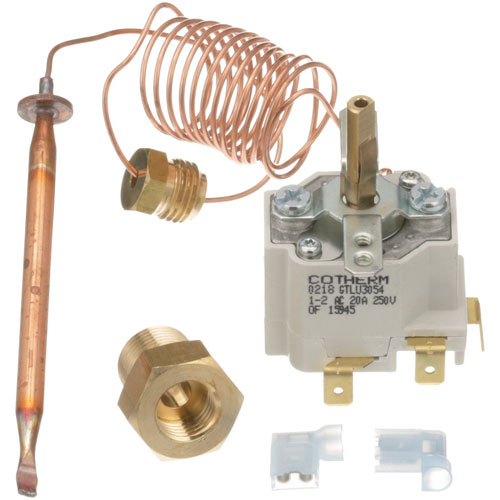

Southbend 9126-1 Thermostat CAP 36" 140-284°F

SKU: 9126-1 Brand:
Southbend
Availability:
In Stock
(0)
$458.73 Price reduced from $527.28
Save $68.55
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
T/Stat, Temp 140-284 F, 80-140 C,
Bulb 3/8" X 4" Copper, Cap 36", 3/8" Stuff Box,
.187" D-Stem
Qty 3 Tab Term 1/4" And 1/4" Ground
Market Forge Kettle Elt-40
Southbend

Description

The Southbend 9126-1 Thermostat CAP 36" is used to control temperature. It operates by sensing changes in heat by using a 36-inch capillary to regulate electrical contact to keep the temperatures between 140 and 284 degrees Fahrenheit. It is placed in the specific place of sensing where it is necessary to monitor the heat at all times to ensure that it operates properly. It is an essential component of the temperature control system, and it assists in maintaining the constant heat level in commercial cooking conditions.

More Information:

  • ACCUTEMP:AC-9126-1||BLODGETT:41887||CROWN STEAM:9126-1||GROEN:CROWN-9126-1||HOBART:00-881973 ,881973||MARKET FORGE:97-5048 ,97-5990 ,97-6187||SOUTHBEND:4-TH05 ,9126-1 ,SOU9126-1||VULCAN HART:00-881973 ,881973 ,VH881973

Step1: Turn off the appliance and disconnect electrical power.

Step2: Remove the control panel to access the existing thermostat.

Step3: Carefully disconnect the capillary tube and wiring from the old thermostat.

Step4: Unscrew and remove the old thermostat from its mounting.

Step5: Install the new thermostat and secure it in place.

Step6: Reconnect the capillary tube and wiring, reattach the control panel, and test for accurate temperature control.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Southbend 9126-1 Thermostat?

    Regularly inspect the capillary tube and sensing bulb for kinks, leaks, or damage that may affect temperature accuracy. Verify proper calibration within the 140–284°F range to ensure stable heating control. Check mounting and wiring connections for tightness and corrosion to prevent operational issues. Always disconnect power and allow components to cool before performing maintenance for safety.

  • What are common issues with the Southbend 9126-1 Thermostat?

    • Inaccurate temperature readings.
    • Sensor or capillary tube bending or kinking.
    • Heater not turning on or off properly.
    • Loose electrical connections causing intermittent operation.
