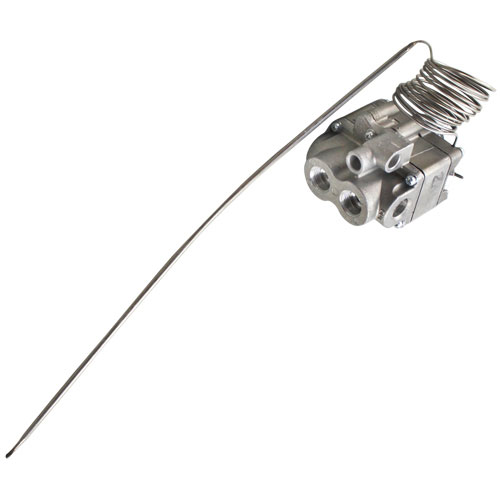

Garland G03145-048 Oven Thermostat FDO-1 W/ 72" Capillary 7/16" CCT

SKU: G03145-048 1-G03145-048 Brand:
Garland
Availability:
In Stock
(0)
$258.42 Price reduced from $405.06
Save $146.64
Have a Question? +1 (866) 863-0907

Specifications:

  • Fdo Thermostat, Gas In/Out 7/16" Cct.
  • 150-550F, 48" Cap, Outlets H & G.
  • For Knob Use [Black Dial W/ Insert # 22-1009
  • 1/18/08 Changed From 48" Cap To 72"
  • Garland
  • Broiler S/N 11151 & After: Sr1-40Er, Sr1-40R, Sr1-50R.
  • Oven Series: 40/50 (Except 2-40/50), 40R, G280 (Except
  • G280-2), G380, H280, Rc, St286
  • Master Series Ovens {M--R(E)/Rc(E).

Description

The Garland G03145-048 FDO Thermostat operates by detecting the temperature inside the oven with the help of its sensing element and reacting to the changes as the level of heat variations during the work. It works by mechanically changing its internal controls to regulate the heating cycle by the temperature it senses. This thermostat is installed in the control area of the oven and is linked to the heating system parts and it is fitted into the mounting area that is made to control the temperature.

Dimensions:

  • Weight: 1.5 lbs
  • Length: 15 in
  • Height: 3 in
  • Width: 4.5 in

This Part Fits the Following Models

153 models
Garland 40 SERIES Garland 40/50 SERIES Garland 50R SERIES Garland 50S SERIES Garland C836-36ARC Garland G280 SERIES Garland G286 Garland G380 Garland GV280 SERIES Garland H/P-280 Garland H280 Garland H280 SERIES Garland H283 Garland H284 Garland H285 Garland H286 Garland H287 Garland H288 Garland H289 Garland HP-280 SERIES Garland M100R Garland M100RC Garland M100S Garland M100T Garland M100XR Garland M100XRC Garland M100XRCM Garland M100XRM Garland M100XS Garland M100XSM Garland M100XT Garland M100XTM Garland M105R Garland M105RC Garland M105S Garland M105T Garland M105XR Garland M105XRC Garland M110XRM Garland M42-6R Garland M42-6RC Garland M42R Garland M42RC Garland M43-1R Garland M43-1RC Garland M43-2R Garland M43-2RC Garland M43-3R Garland M43-3RC Garland M43R Garland M43RC Garland M44R Garland M44RC Garland M45R Garland M45RC Garland M46R Garland M46RC Garland M47-23R Garland M47-45R Garland M47-45RC Garland M47-51R Garland M47-51RC Garland M47-68R Garland M47-68RC Garland M47R Garland M47RC Garland M48-45R Garland M48-45RC Garland M48-51R Garland M48-51RC Garland M48-68R Garland M48-68RC Garland M48R Garland M48RC Garland M54R Garland M54RC Garland M60R Garland M60RC Garland M60S Garland M60T Garland M60XR Garland M60XRC Garland MS42-6R Garland MS42-6RC Garland MS42-6RCE Garland MS42-6RE Garland MS42R Garland MS42RC Garland MS42RCE Garland MS42RE Garland MS43R Garland MS43RC Garland MS43RCE Garland MS43RE Garland MS44R Garland MS44RC Garland MS44RCE Garland MS44RE Garland MS54R Garland MS54RC Garland MS54RCE Garland MS54RE Garland MSSRC Garland MST42-6R Garland MST42-6RC Garland MST42-6RCE Garland MST42-6RE Garland MST42R Garland MST42RC Garland MST42RCE Garland MST42RE Garland MST43R Garland MST43RC Garland MST43RCE Garland MST43RE Garland MST44R Garland MST44RC Garland MST44RCE Garland MST44RE Garland MST45R Garland MST45RC Garland MST45RCE Garland MST45RE Garland MST46R Garland MST46RC Garland MST46RCE Garland MST46RE Garland MST47-51R Garland MST47-51RC Garland MST47-51RCE Garland MST47-51RE Garland MST47-68R Garland MST47-68RC Garland MST47-68RCE Garland MST47-68RE Garland MST47R Garland MST47RC Garland MST47RCE Garland MST47RE Garland MST54R Garland MST54RC Garland MST54RCE Garland MST54RE Garland S28 Garland S284 Garland S286 Garland S288 Garland ST28 Garland ST284 Garland ST284-RCE Garland ST286 Garland ST286-RCE Garland ST288
Showing of 153.0

GARLAND:

1017502 1017505 1017597 1017598 G03145-072 GL1017502 GL1017505 GL1017598 GLG03145-048 GLG03145-072 GLUK27 UK27

U-LINE:

4200-002

Step1: Disconnect power to the oven to prevent electrical hazards.

Step2: Remove the existing thermostat by detaching wires.

Step3: Carefully route the new capillary tube in the same path.

Step4: Mount the new thermostat, reconnect all wires securely.

Step5: Restore power and test the oven for proper temperature regulation.

  • What maintenance is required for the Garland G03145-048 Thermostat?

    Regularly inspect the thermostat and capillary for signs of wear or damage. Ensure connections are secure and free from grease buildup. Calibrate as needed to maintain accurate temperature readings. Always disconnect power before servicing for safety.

  • What are common issues with the Garland G03145-048 Thermostat?

    • Inaccurate temperature readings
    • Failure to trigger heating elements
    • Capillary tube kinks or leaks
    • Intermittent or erratic oven operation
