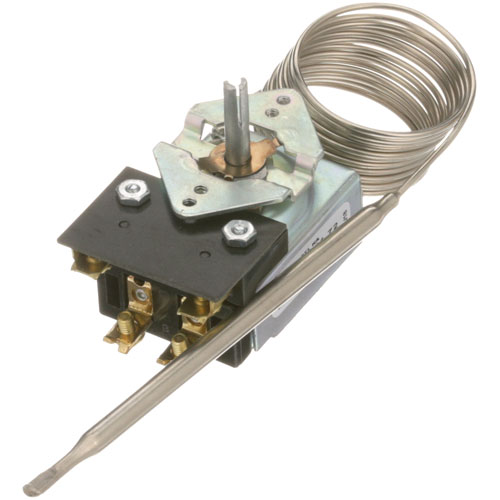

Bakers Pride M1110A Oven Thermostat Type KA 1/4” X 5-9/16” Bulb 100-550°F

SKU: M1110A Brand:
Bakers Pride
Availability:
In Stock
(0)
$115.76 Price reduced from $147.52
Save $31.76
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Type - Ka ] [ Temp 100-550 ] [ Bulb 1/4" X 5-9/16" ]
[ Cap 72" ] Has Auxillary Switch. 4 Terminals.
Apw Dial Is # 22-1219, 550-100
Bakers Pride Includes Knob, Ap Sells Separate As # 22-1204
Apw Toaster M9502, M95-3
Apw Warmer Hfw(2,2D,3,3D,4,4D,5,5D) Bm-30D,
Series Bm-80 & Bw & Sm-50 & Sw & Tm-43D Needing 72" Cap.
Bakers Pride Model ?

Description

The Bakers Pride M1110A Thermostat works by detecting the temperature inside the oven by use of a capillary bulb that expands with the heat to control the mechanism. The bulb detects temperature variations and sends the thermostat to adjust the heating elements of the oven to keep the temperature within a given range of 100°F-550°F. The thermostat can be mounted directly on the oven, and it is placed in a location where the bulb can read the changes in heat properly and hence the temperature can be monitored accurately during baking or cooking processes. The component has a Type KA design with a 1/4 X 5-9/16 inch bulb that fits properly into compatible ovens.

More Information:

  • APW WYOTT:56427 ,56428 ,56540 ,56743 ,APW56427 ,APW56428 ,APW56540 ,APW56743||BAKERS PRIDE:AS-M1110A ,BKPM1020X ,BKPM1110X ,M1020X ,M1024X ,M1110A ,M1110X||U-LINE:5300-015 ,5300-088 ,5300-08H ,KA1048-36 ,KA601-72 ,TA125A028

Step1: Turn off power and gas supply to oven to prevent shock before starting.

Step2: Remove control panel to access old thermostat assembly and ensure cool surface.

Step3: Carefully disconnect capillary bulb and wiring from old unit, label connections for reassembly.

Step4: Install new thermostat, route bulb to sensing area, secure mounting following manufacturer guidelines.

Step5: Reassemble panel, restore power, test temperature range and calibrate if needed.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Bakers Pride M1110A Thermostat?

    Inspect and calibrate the oven thermostat regularly to ensure accurate temperature control. Clean the sensing bulb and surrounding area to prevent grease buildup. Check wiring connections for wear and ensure the bulb is properly positioned. Always disconnect power before servicing.

  • What are common issues with the Bakers Pride M1110A Thermostat?

    • Faulty or damaged sensing bulb.
    • Wiring or connection failures.
    • Inconsistent heating cycles.
    • Calibration drift over time.
    • Thermostat relay sticking or failure.
    • Capillary tube leakage or breakage.
