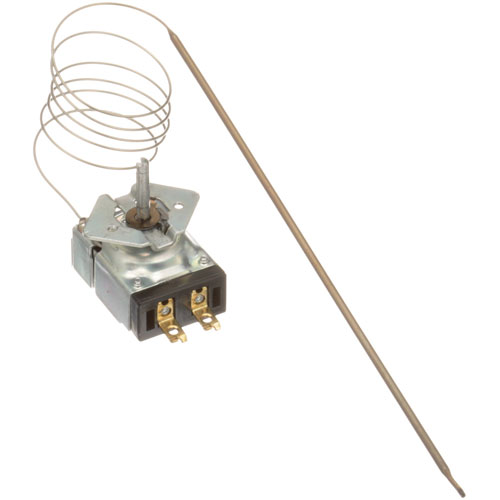

Vulcan Hart 00-346746-00001 Range KNP Thermostat W/ Stainless Steel Bulb 5"

SKU: 00-346746-00001 Brand:
Vulcan Hart
Availability:
Out of Stock
(0)
$146.65 Price reduced from $225.96
Save $79.31
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Type - Knp ] [ Temp 250-950 ] [ Bulb 5/32" X 8-1/4"
Stainless] [ Cap 36" ] [ Mount 5 Off-Set Horizontal ]
Positive Off.
[ Dial # 22-1285, Knob, Black & Silver, [ 2-1/2"
Dia ] [ Off-7-1] [Mount .187" ] [Position Up ]
Ge/Hobart Range Cr40, Cr40B, Cr41, Cr41B, Cr44, Cr44B,
Cr46,Cr46B, Cr47, Cr47B, Cr50, Cr50B, Cr52, Cr53, Cr56,
Cr401.

Description

The Vulcan Hart 00-346746-00001 Range KNP Thermostat is a commercial cooking temperature control device of high quality. This thermostat has temperature range of 250°F to 950°F and ensures precise temperature control required for the better food preparation. It boasts a 5" stainless steel bulb and a 36" capillary tube for flexible installation and reliable and efficient functionality. The black and silver dial is 2 1/2" in diameter and has clear markings for easy readability. This thermostat is designed for use with GE and Hobart range models CR40, CR41, CR50, and others.

More Information:

  • GENERAL ELECTRIC:XNC8X1||HOBART:00-346746-00001 ,00-346746-1 ,00-350571-00001 ,346746-00001 ,346746-1 ,350571-1 ,HOB00-346746-1 ,HOB346746-1 ,HOBXNC8X1 ,XNC8X1 ,XNC8X1/346746-1||U-LINE:5300-502 ,KNP1-36 ,KNP6-36||VULCAN HART:00-346746-00001 ,346746-00001 ,346746-1

Step1: Turn off gas/electric supply and ensure the range is completely cool before starting.

Step2: Remove control panel and disconnect wiring from old thermostat carefully.

Step3: Gently pull out capillary bulb from oven cavity without bending or damaging it.

Step4: Install new thermostat, secure mounting, and route bulb in original position.

Step5: Reconnect wiring, restore power, and test temperature control for accuracy.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Vulcan Hart 00-346746-00001 Thermostat?

    Perform periodic calibration checks and inspect the thermostat for debris or grease buildup on the bulb. Ensure all electrical connections remain tight and corrosion-free. Regular maintenance improves temperature control accuracy and safety.

  • What are common issues with the Vulcan Hart 00-346746-00001 Thermostat?

    • Inaccurate temperature readings.
    • Sensor bulb damage or leaks.
    • Thermostat failure to cycle the heating.
    • Wiring or connection faults.
    • Inconsistent range temperature.
    • Calibration drift over time.
    • Intermittent signal loss.
