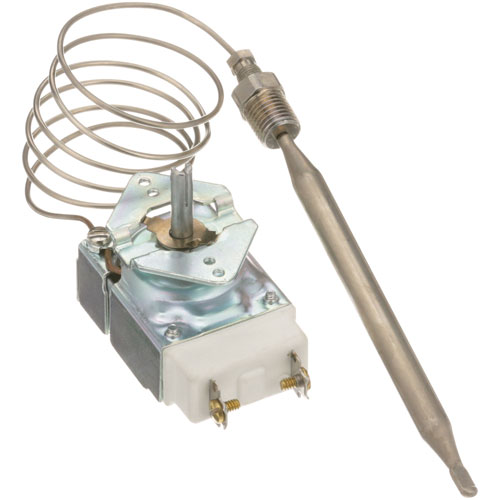

Royal Range 3113 Oven Thermostat RX 3/8" X 5" 36" CAP

This thermostat regulates the operating temperature inside fryers and ovens by measuring heat levels and making adjustments as needed. The thermostat includes a sensor that uses a 3/8" x 5" sensing bulb to measure internal temperature levels and operates within a temperature range of 200°F to 400°F. The thermostat comes with a 36" long capillary tube and a 1/4" MPT stuff box mount connection for installation. It is commonly used in gas and electric fryers where controlled temperatures are important for normal food preparation. Replacing an old or malfunctioning thermostat can help resolve problems related to equipment temperature control.

Equipment Compatibility:
Common applications for Royal Range oven thermostat controls include commercial fryers and cooking systems used in restaurants, cafeterias, and foodservice kitchens where regulated heat control is necessary during operation. This Oven Thermostat, RX 3113, is compatible with commercial equipment from leading brands such as American Range, Anets, Bakers Pride, Dean, Frymaster, Imperial, Pitco, and Tri-Star, and more, where controlled temperature adjustment and sensing functions are required for normal equipment operation.
Brand Compatibility
Replaces multiple part numbers across various commercial fryer and cooking equipment brands, including Royal Range, American Range, Anets, Bakers Pride, Dean, Frymaster, Imperial, Pitco, Southbend, Tri-Star, and other manufacturers. Refer to the “Replaces Parts” section for complete cross-reference details.

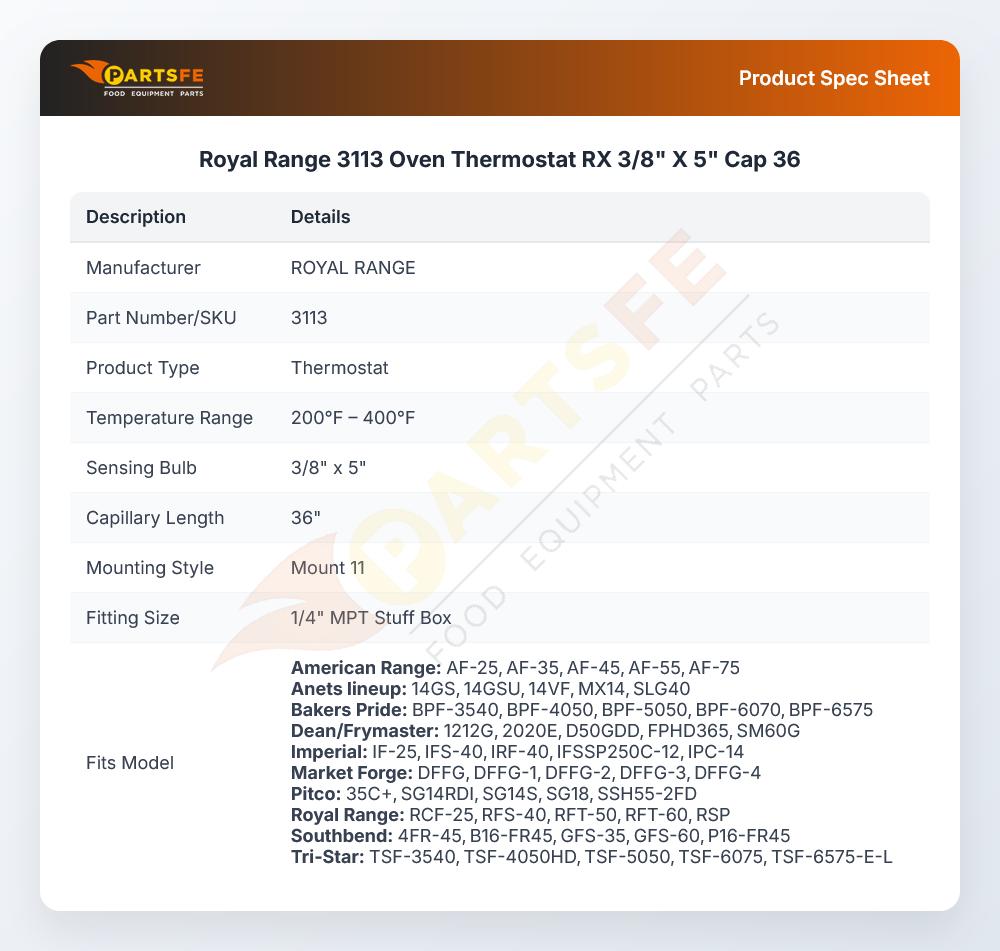

Product Specifications:

Manufacturer: Royal Range
SKU: 3113
Product Type: Oven Thermostat
Temperature Adjustment Range: 200°F to 400°F
Bulb Dimension: 3/8" x 5"
Capillary Length: 36 inches
Connection Size: 1/4" MPT Stuff Box
Dial Diameter: 2-1/4 inches
Dial Style: Black knob with white printed temperature markings
Mount Type: 11 mount configuration
Application Use: Commercial gas and electric fryer systems

Key Features:

• Controls heat levels inside the fryer and oven equipment during the cooking operation
• Sensing bulb monitors temperature changes within the cooking chamber
• Long capillary tube supports installation across different equipment layouts
• Adjustable rotary dial allows manual temperature selection between OFF and 400°F
• Suitable for commercial fryer applications requiring controlled heating response

""After replacing the thermostat, the fryer maintained cooking temperature more evenly throughout operation.""

• AMERICAN RANGE:AMRA50400||ANETS:60125401 ,P8905-03||BAKERS PRIDE:300232||DEAN:1175 ,1204 ,2557 ,807-3515 ,8073515||FAGOR:12189749||FRYMASTER:1175 ,1204 ,2557 ,807-3515 ,8073515 ,FM1175 ,FM1204 ,FM2557 ,FM807-3515 ,FM8073515||IMPERIAL:1175 ,1175-RS ,319 ,IMP1175 ,IMP319||JADE RANGE:8800000027||MARKET FORGE:93-0192||PITCO:60124501 ,60125401 ,P8905-03 ,PT60125401||ROYAL RANGE:3113||SIERRA RANGE:109-0084||SOUTHBEND:1182151 ,1199572 ,SOU1182151||TRI-STAR:300232 ,AS-300232 ,TRS300232||U-LINE:5300-40A ,KX299-36 ,RX1-36

Step1: Turn off the oven gas and power before starting the process.

Step2: Access the control area where the thermostat is located.

Step3: Disconnect wiring and remove the sensing bulb carefully.

Step4: Remove the old thermostat from its mounting bracket.

Step5: Install the new thermostat securely.

Step6: Reconnect all wiring and position the bulb correctly.

Step7: Restore power and gas supply.

Step8: Test for proper temperature control.

• What maintenance is required for the Royal Range 3113 Thermostat?

  Regularly check the oven thermostat for dust and debris, ensuring the contacts remain clean. Calibrate periodically to maintain accurate temperature readings. Inspect wiring connections for damage, and always turn off power before servicing to prevent electrical hazards.

• What are common issues with the Royal Range 3113 Thermostat?

  • Inaccurate temperature readings.
  • Unresponsive controls or buttons.
  • Frequent short cycling of heating or cooling systems.
  • Wiring connection problems causing intermittent operation.
