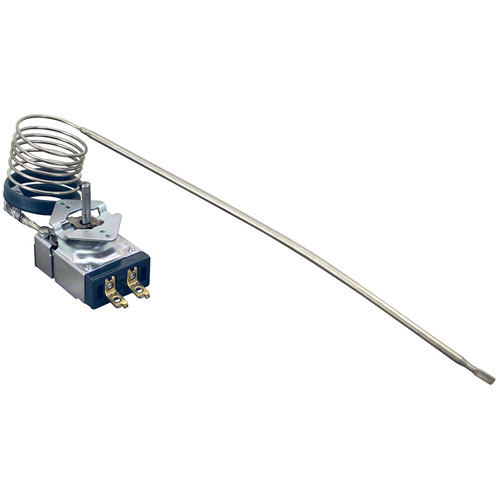

Garland CKG0894-01 Thermostat S 150°F-550°F

SKU: CKG0894-01 Brand:
Garland
Availability:
In Stock
(0)
$89.41 Price reduced from $189.42
Save $100.01
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Type - S ] [ Temp 150-550 ] [ Bulb 3/16" X 11" ]
[ Cap 42" ] [ Mount 1 ] .187" D Stem Flat Down
[ Use Dial # 22-1395 & Dial Insert # 22-1396 ].
For Pointer Knob Use # 22-1180.
Us Range Oven Sdg-(1.2) W/ Manual Controls
Garland Oven 694-2-120.
Series 680, Bco, Eco, Ico, Te2A/B, Te3/4, Tg2A,
Tg3/4, Tte2(A,B), Tte3/4, Ttg2A, Ttg3/4, (Also Er-1142
Which Is Very Old).

Description

The Garland CKG0894-01 Thermostat S 150°F-550°F is a temperature controller unit that is used to control the amount of heat in compatible cooking equipment. It detects internal temperature variations and varies the gas or electric input to hold a desired setting in the 150°F to 550°F range. This thermostat is attached to the back of the control panel with the sensing element inside the heated cavity. It provides controlled heat management as a component of the temperature regulation system of the appliance that is required to allow a stable performance in cooking.

More Information:

  • GARLAND:-1032400 ,-1032499 ,-CK1032400 ,-CKG0894-01 ,-G0894-01 ,1032400 ,1032499 ,CK1032400 ,CKG0894-01 ,G0894-01 ,GL1032400 ,GL1032499||RANCO:-G1-2670 ,G1-2670||U-LINE:5300-170 ,S236-42

Step1: Turn off power to the oven at the circuit breaker.

Step2: Remove the control knob and unscrew the old thermostat.

Step3: Disconnect wires carefully, noting positions.

Step4: Attach the new thermostat and reconnect wires.

Step5: Secure with screws and replace the knob.

Step6: Restore power and test temperature control.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Garland CKG0894-01 Thermostat?

    Check the thermostat periodically for loose or damaged wiring. Clean any dust or grime from the unit. Verify that temperature settings are accurate. Handle carefully and keep it dry to ensure stable, consistent performance.

  • What are common issues with the Garland CKG0894-01 Thermostat?

    • Thermostat giving inconsistent temperature readings.
    • Oven failing to reach the set temperature.
    • Switch or control mechanism sticking.
    • Electrical contacts wearing or corroding over time.
