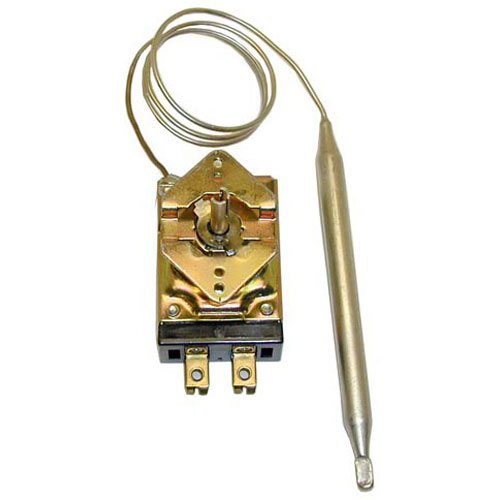

Star Mfg 2T-1421B8703 Thermostat S 24" CAP 3/8" X 5-1/8" 200-400°F

SKU: 2T-1421B8703 Brand:
Star Mfg
Availability:
Out of Stock
(0)
$233.62 Price reduced from $359.97
Save $126.35
Have a Question? +1 (866) 863-0907 / (630) 326-8602

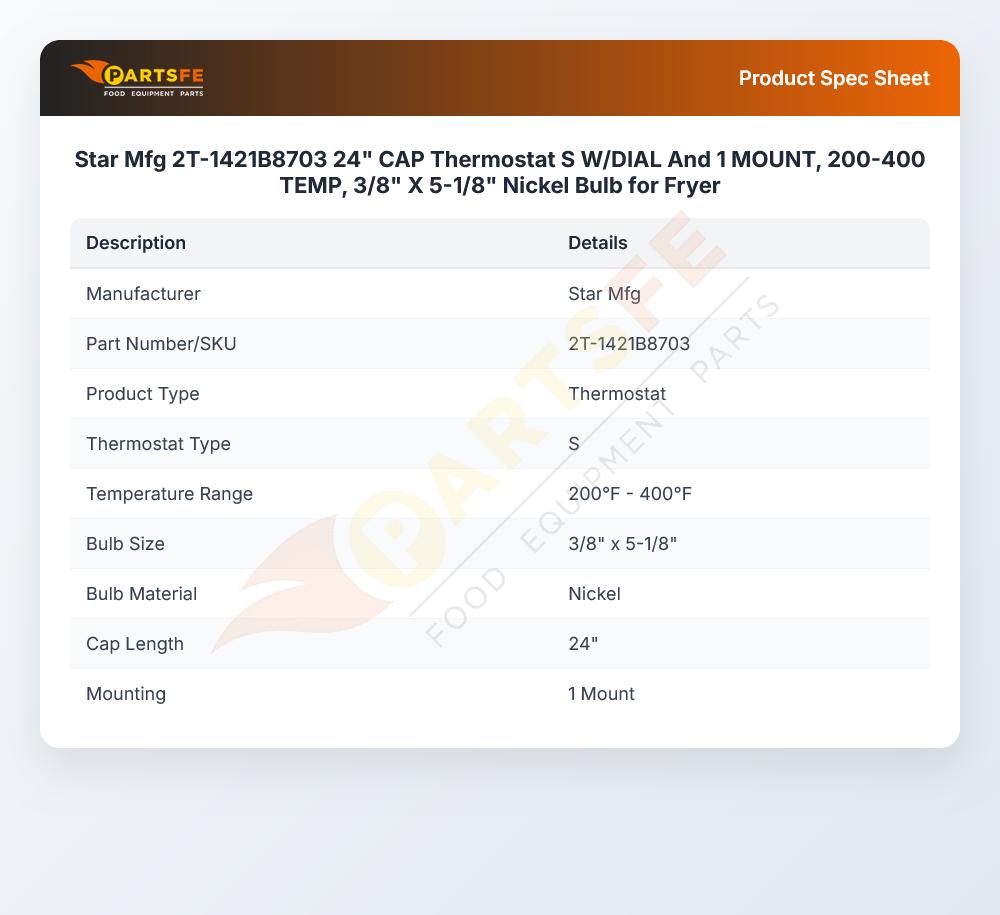

Specifications:

Attribute Details
[ Type- S ] [ Temp 200-400 ] [ Bulb 3/8" X 5-1/8"
Nickel ] [ Cap 24" ] [ Mount 1 ] [ Dial # 22-1197
Off-400-250, Flat Right, Black W/White Print.
Gen Use Dial # 22-1006 ] Off-400-200, 4-Way,
Add-On Stuffing Box # 26-1152
Nu-Vu
Toastmaster
Fryer Fry Kettle(208/240V) 1404E, 1414B, 1421, 1427, 1439,
1454.
Super "T" Fry Kettle(Standard Only) Fr(29,48,50),
Fryer Model Group A Thru G.
Auto Fryer 1403, 1439, 1422, 1433, 1435

Description

The Star Mfg 2T-1421B8703 Thermostat S W/Dial and 1 Mount 200-400°C 24" CAP 3/8" X 5-1/8" Nickel Bulb is used to control the temperature of commercial appliances by closing or opening electrical contacts depending on the changes in heat. The nickel bulb is temperature sensitive along its 24" capillary and the dial can be adjusted between the 200 and 400°F range. It is the temperature management system of the appliance that ensures safe and consistent functioning of the appliance during the cooking or heating process.

More Information:

  • APW WYOTT:14870 ,1487000||MIDDLEBY MARSHALL:1421B8703||STAR MFG:1421B8703 ,1427B8701 ,2T-1421B8703||U-LINE:5300-014 ,5300-01D ,S224-24

Step1: Disconnect all electrical power to the fryer before servicing.

Step2: Remove front panel and carefully detach old thermostat capillary and sensing bulb.

Step3: Mount new thermostat securely in the original bracket position.

Step4: Insert capillary tube and bulb into correct sensing area without kinks or damage.

Step5: Reconnect wiring to matching terminals using wiring diagram for reference.

Step6: Restore power and slowly test temperature control for safe, stable operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Star Mfg 2T-1421B8703 Thermostat?

    Regularly inspect and clean the thermostat and bulb to remove grease and ensure accurate sensing. Check dial calibration and mounting stability to maintain consistent fryer performance. Replace worn parts promptly and ensure electrical safety to prevent overheating.

  • What are common issues with the Star Mfg 2T-1421B8703 Thermostat?

    • Thermostat failure or sticking.
    • Dial becomes hard to adjust.
    • Loose mounting affecting control.
    • Wiring corrosion or connection faults.
