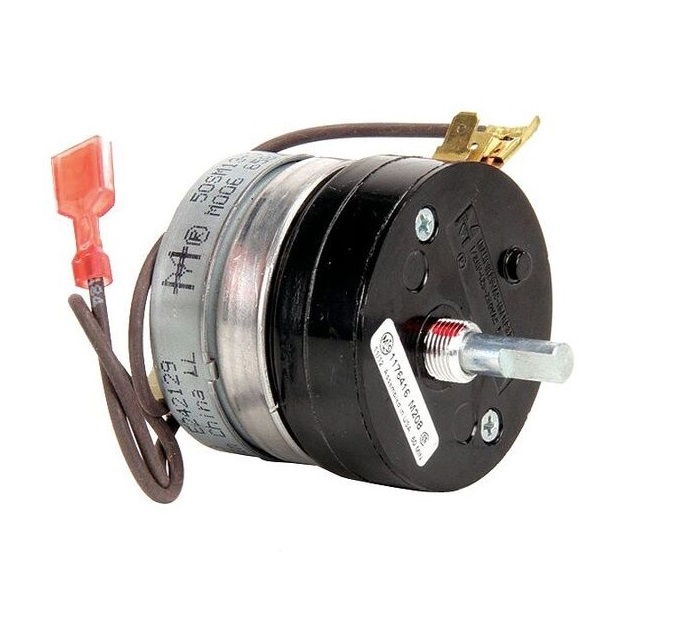

Southbend 1176416 Oven Motorized Timer 60 Minute 240V 60Hz

SKU: 1176416 Brand:
Southbend
Availability:
In Stock
(0)
$381.71 Price reduced from $411.32
Save $29.61
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
240V/60Hz

Description

The Southbend 1176416 Motorized Timer is a component that allows the cooking time to be controlled by a motor-driven system that automatically moves the timer dial. When programmed, it controls the heating cycle of the oven, so that different cooking operates are timed exactly. It is installed on the inside of commercial and residential oven walls and is attached to the control panel, where it is linked to the electrical system to control the flow of power. This 60-minute timer operates on 240V at 60Hz, and can be used with standard circuits.

More Information:

  • SOUTHBEND:1176416 ,SOU1176416
Step 1: Prior to starting the installation, ensure that the oven is disconnected from the power supply to maintain safety.

Step 2: Take off the front control panel or access cover to gain access to the current oven timer assembly.

Step 3: Detach the wiring from the previous timer, making a note of the terminal positions or labeling the wires for proper reinstallation.

Step 4: Remove any hardware that secures the old timer, then take out the unit.

Step 5: Place the new 1176416 timer into the original position and fasten it using the suitable screws or brackets.

Step 6: Reattach the wiring to the correct terminals, making sure the connections are secure and accurate.

Step 7: Reassemble the control panel or cover, restore power, and test the timer by initiating a cooking cycle to confirm it operates correctly.
