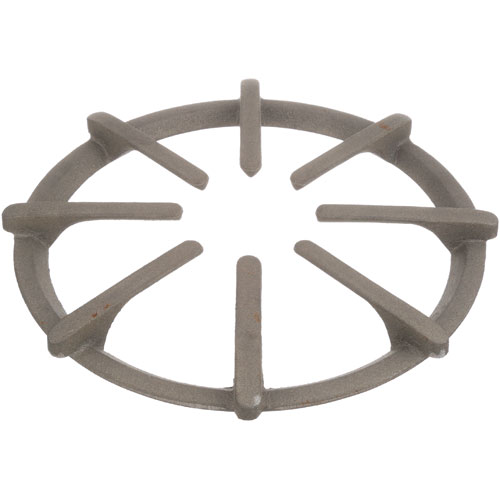

Vulcan Hart 00-409432-00001 Range Grate Cast Iron

SKU: 00-409432-00001 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$51.51 Price reduced from $78.25
Save $26.74
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Rough Cast Iron Spider Grate
12-3/4" Dia, 12" Ring Dia) (Material Ci)
8 Equal Legs
Vulcan
Range 7845, H45, Sg7845.
Series Gh, Gm, Ghx.

Description

The Vulcan Hart 00-409432-00001 Range Grate Cast Iron is an ingredient that is meant to hold cookware safely on an open flame but still enable the heat to circulate evenly around the base. It works by giving a flat surface where the pots and pans are at the same height above the burner so that cooking can be controlled. This range grate is mounted on commercial cooking ranges that are boiled or simmered using direct heat. It is used as an element of the cooking system.

More Information:

  • HOBART:00-409432-00001 ,109432-1 ,409432-00001 ,409432-1||VULCAN HART:00-409432-00001 ,109432-1 ,409432-00001 ,409432-1 ,VH109432-1 ,VH409432-1

Step1: Turn off power supply and allow all cooking surfaces to cool completely.

Step2: Remove the damaged or worn grate from the burner carefully.

Step3: Clean the burner area to remove grease, debris, and food residue buildup.

Step4: Position the new grate evenly over the burner assembly.

Step5: Ensure all grate legs sit securely and the grate remains level during placement.

Step6: Test stability and confirm proper flame clearance before operating.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Vulcan Hart 00-409432-00001 Spider Grate?

    Clean after use to remove grease and food debris, preventing buildup. Dry thoroughly to avoid rust formation. Lightly oil surfaces and inspect for cracks or instability during routine checks. Ensure proper seating on the burner ring for safe operation.

  • What are common issues with the Vulcan Hart 00-409432-00001 Spider Grate?

    • Rust formation from moisture exposure.
    • Cracking due to thermal stress.
    • Uneven burner support causing wobbling.
    • Grease buildup affecting seating.
    • Surface wear reducing stability.
    • Misalignment on ring supports.
