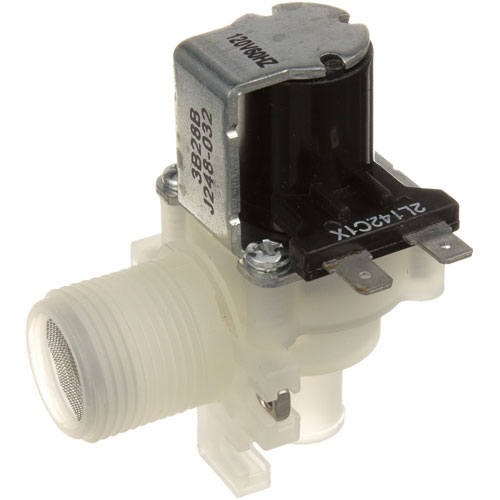

Hoshizaki 3U0111-02 Ice Machine Water Solenoid Valve 120V

SKU: 3U0111-02 Brand:
Hoshizaki
Availability:
In Stock
(0)
$78.59 Price reduced from $111.00
Save $32.41
Have a Question? +1 (866) 863-0907 / (630) 326-8602

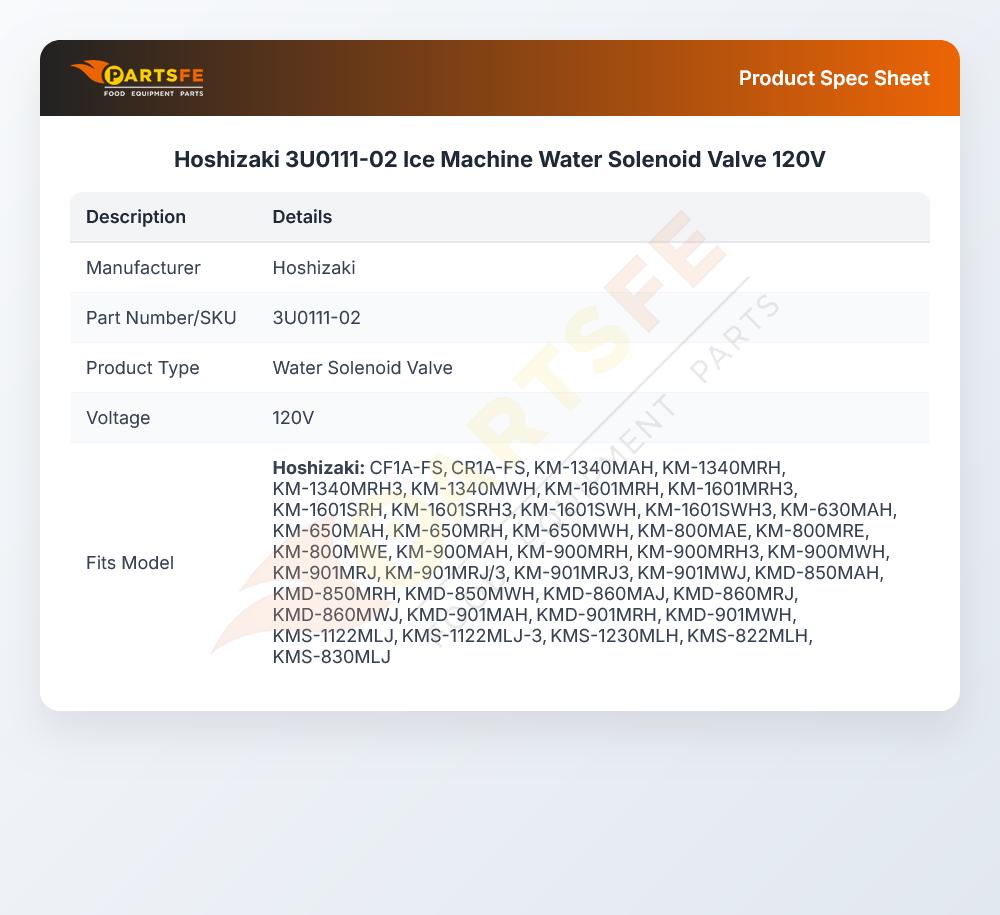

Specifications:

Attribute Details
Water Solenoid Valve, 120V
Hoshizaki 900-Sd, Cf1A-Fs, Cr1A-Fs, Km-1340Mah, Km-1340Mrh,
Km-1340Mwh, Km-1601Mrh, Km-1601Mrh3, Km-1601Srh,
Km-1601Srh3, Km-1601Swh, Km-1601Swh3, Km-800Mae, Km-800Mre,
Km-800Mwe, Km-900Mah, Km-900Mrh, Km-900Mrh3, Km-900Mwh,
Km1340Mrh, Km1601Mrh, Km1601Mrh3, Km1601Srh, Km1601Srh3,
Km630Mah, Km900Mah, Kms-1230Mlh

Description

The Hoshizaki 3U0111-02 Water Solenoid Valve 120V is an inlet control device used to regulate liquid, flow into a compatible ice maker. It operates through an electrically energized coil that opens and closes an internal plunger, allowing a measured supply to enter the system during the fill cycle and stopping flow when deactivated. It responds to signals from the appliance control board to maintain proper intake for each production cycle. It is typically installed on the incoming fluid line inside select commercial equipment where it connects the supply piping to the internal distribution system.

More Information:

  • HOSHIZAKI:3U0111-02 ,HOS3U0111-02

Step1: Turn off power to the ice machine and shut off the water supply.

Step2: Remove the existing solenoid valve by disconnecting the water lines.

Step3: Position the new valve and reconnect all water lines and electrical connections.

Step4: Secure the valve in place using mounting screws or brackets.

Step5: Restore water and power, then test the ice machine for proper operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Hoshizaki 3U0111-02 Solenoid Valve?

    Regularly inspect the solenoid valve for mineral buildup, debris, or leaks. Clean the valve and connections as needed and ensure wiring is secure. Proper maintenance ensures consistent water flow and prevents operational interruptions or flooding.

  • What are common issues with the Hoshizaki 3U0111-02 Solenoid Valve?

    • Clogged or restricted water flow.
    • Leaking around connections.
    • Electrical connection failures.
    • Valve not opening or closing properly.
