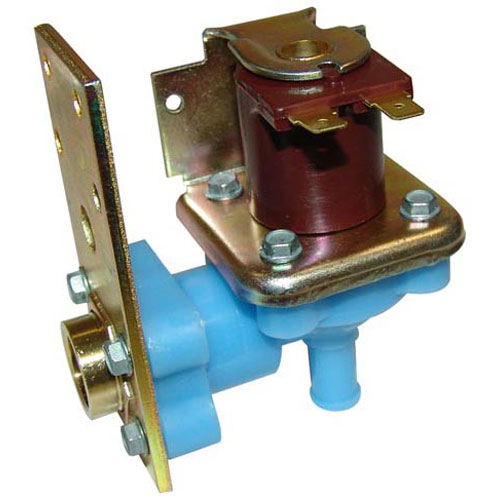

Scotsman 12-2548-01 Ice Machine Water Solenoid Valve 24V 60Hz

SKU: 12-2548-01 Brand:
Scotsman
Availability:
In Stock
(0)
$110.52 Price reduced from $199.28
Save $88.76
Have a Question? +1 (866) 863-0907 / (630) 326-8602

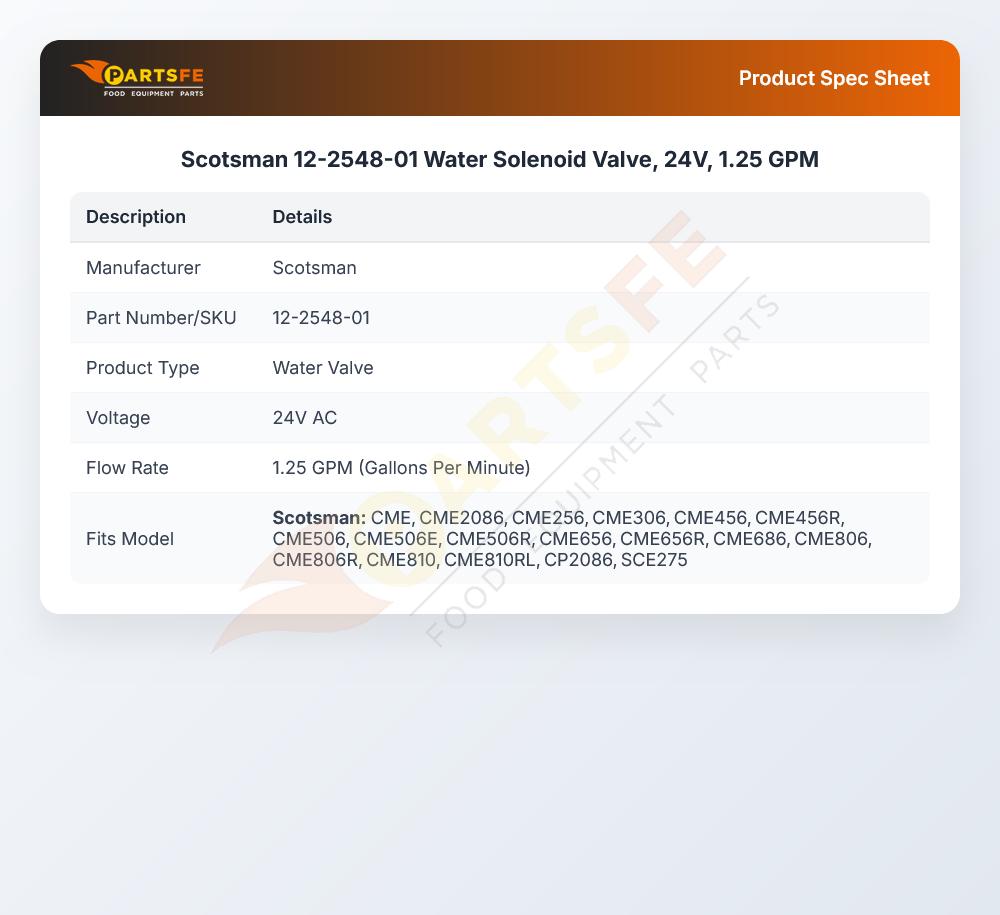

Specifications:

Attribute Details
Water Solenoid Valve, 24V, 1.25 GPM
Scotsman Cme306, Cme456, Cme456R, Cme506, Cme506E, Cme656R,
Cme686, Cme806R, Cme810, Cme810Rls-1A, Cp2086, Sce275

Description

The Scotsman 12-2548-01 Water Solenoid Valve 24V 60Hz regulate the flow of water into the ice machine which allows making ice efficiently. It use a 24-volt electrical signal at 60Hz to open and close the valve, bringing water into the machine at the exact moment required. It controls the amount of water added to the ice to maintain the better ice formation and avoids overflow or wastage of water. The solenoid valve is specifically designed to be compatible with Scotsman ice machines.

More Information:

  • SCOTSMAN:12-2548-01 ,12-3124-05 ,SC12-2548-01 ,SC12-3124-05

Step1: Disconnect electrical power and shut off the incoming water supply before servicing the ice machine.

Step2: Remove the access panel and locate the existing water solenoid valve assembly.

Step3: Disconnect wiring connectors and water lines carefully, keeping track of positions.

Step4: Remove the faulty valve and install the new solenoid valve in the correct flow direction.

Step5: Reconnect water lines and electrical terminals securely to prevent leaks or loose connections.

Step6: Restore water and power, then test ice production and inspect for leaks or proper water flow.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Scotsman 12-2548-01 Water Solenoid Valve?

    Regularly inspect the ice machine valve for mineral scale buildup and clean the inlet screen to maintain proper water flow. Ensure electrical connections remain tight and free from corrosion. Flush the water line periodically to prevent clogging. Routine care supports maintain consistent ice production and essential valve operation.

  • What are common issues with the Scotsman 12-2548-01 Ice Machine Water Solenoid Valve?

    • Reduced water flow through the valve.
    • Solenoid humming without actuating.
    • Leaks at valve fittings.
    • Valve operating slowly.

  • What are common issues with the Scotsman 12-2548-01 Water Solenoid Valve?

    • Valve not opening due to electrical coil failure or wiring issues.
    • Reduced ice machine water flow caused by sediment or scale blockage.
    • Intermittent operation from weak or failing solenoid coil.
    • Continuous water leakage from worn internal seals.
    • Buzzing noise without proper valve actuation.
