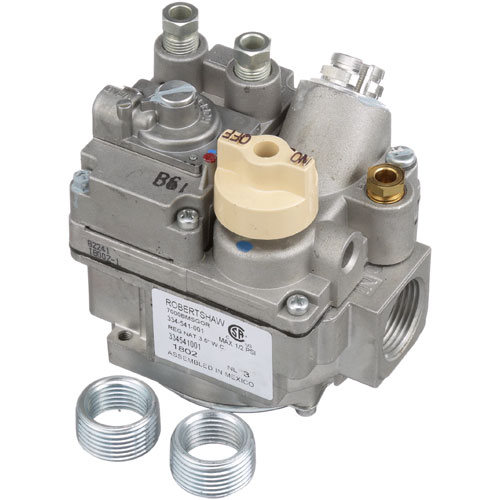

Vulcan Hart VH110841-1 Natural Gas Safety Bleed Gas Actuator W/ Pilot /4" FPT 300,000 BTU

SKU: VH110841-1 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$253.61 Price reduced from $397.50
Save $143.89
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
[Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
Bleed Gas Ports 1/4" Cct, 300,000 Btu
**Use # 51-1470 To Convert To Lp Gas.**
Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
500Mv Under Load.
Southbend Fryer Series 14,18.
Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
Wolf Fryer Ss-Wtf-42, Wtf-42.

Description

The Vulcan Hart VH110841-1Natural Gas Safety Bleed Actuator 3/4" FPT with Pilot serves commercial cooking appliances by delivering safe and efficient gas flow regulation. This actuator controls natural gas supply through its 300,000 BTU output which connects through a 3/4" FPT connection to deliver reliable performance during applications such as fryers. The part includes a slotted thermopile magnet together with a bleed gas actuator featuring a 1/4" CCT pilot and 3/4" x 1/2" reducer bushings for straightforward installation and operational use.

More Information:

  • GARLAND:1092700 ,GL1092700||HOBART:00-410841-00001 ,00-412196-00G11 ,00-412196-00G13 ,00-412196-00G17 ,110841-1 ,410841-00001 ,410841-1 ,412196-00G11 ,412196-00G13 ,412196-00G17 ,412196-G11 ,412196-G13 ,412196-G17||PITCO:P5045642 ,P5045659 ,PTP5045642 ,PTP5045659||U-LINE:334-541-001 ,700-886||VULCAN HART:00-410841-00001 ,00-412196-00G11 ,00-412196-00G13 ,00-412196-00G17 ,110841-1 ,410841-00001 ,410841-1 ,412196-00G11 ,412196-00G13 ,412196-00G17 ,412196-G11 ,412196-G13 ,412196-G17 ,VH110841-1 ,VH410841-1
