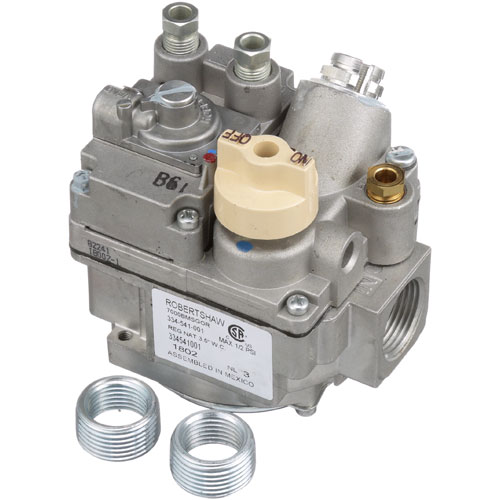

Vulcan Hart VH410841-1 3/4" FPT Natural Gas Safety Bleed Gas Actuator W/ Pilot 300,000 BTU

SKU: VH410841-1 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$253.61 Price reduced from $397.50
Save $143.89
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
[Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
Bleed Gas Ports 1/4" Cct, 300,000 Btu
**Use # 51-1470 To Convert To Lp Gas.**
Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
500Mv Under Load.
Southbend Fryer Series 14,18.
Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
Wolf Fryer Ss-Wtf-42, Wtf-42.

Description

Vulcan Hart VH410841-1 3/4" FPT Natural Gas Safety Bleed Gas Actuator with Pilot functions as a safety control part for commercial kitchens and industrial applications. This unit regulates gas safely through its 300,000 BTU capacity. The actuator operates through gas supply control features and ignition pilot functions to enhance safety measures.

More Information:

  • GARLAND:1092700 ,GL1092700||HOBART:00-410841-00001 ,00-412196-00G11 ,00-412196-00G13 ,00-412196-00G17 ,110841-1 ,410841-00001 ,410841-1 ,412196-00G11 ,412196-00G13 ,412196-00G17 ,412196-G11 ,412196-G13 ,412196-G17||PITCO:P5045642 ,P5045659 ,PTP5045642 ,PTP5045659||U-LINE:334-541-001 ,700-886||VULCAN HART:00-410841-00001 ,00-412196-00G11 ,00-412196-00G13 ,00-412196-00G17 ,110841-1 ,410841-00001 ,410841-1 ,412196-00G11 ,412196-00G13 ,412196-00G17 ,412196-G11 ,412196-G13 ,412196-G17 ,VH110841-1 ,VH410841-1
