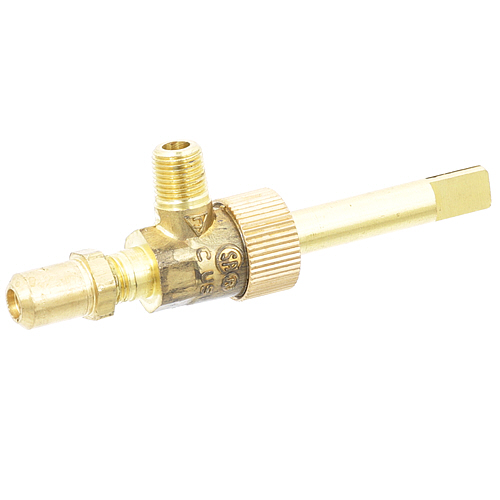

Star Mfg Y7249 Burner Valve 1/8" NPT

SKU: Y7249 Brand:
Star Mfg
Availability:
In Stock
(0)
$47.49 Price reduced from $64.92
Save $17.43
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Gas In 1/8" Npt, Gas Out 3/8"-27, #46 Hood Orifice & Point,
Adjustable, Stem 1-3/4" Long, Flat Down, On/Off,
For Lp Hood Orifice Use # 26-1080
Garland Range 40-(4,6,7), 43-(40,43,50,53),
44-(40,43,50,53), 45-40, 46-40R, 46-50, 47-(40,50).
Montague Broiler Series Uf, Ufs, Ufsc, Ufsm (After 10/91).
Grill 2436, 2436T, 2472, 2472T.
Oven 28Cbsf.
Range 2020S, Cr1-10, Sp2020. Series 136, V136.
Star Broiler, Grill
Hot Plate/Range 601Spr, 602, 602H, 804H

Description

The Star Mfg Y7249 Burner Valve controls the flow of gas by spinning an internal stem which opens or closes the passage in the valve body. When the valve is switched on, the gas is permitted to flow to the burner or it is turned off at the inlet. This is an inline burner valve that is normally installed between the gas manifold and the burner assembly. It has a 1/8-inch NPT threaded connection that can be used with standard gas fittings. The gas control system uses the valve manually in the process of ignition, adjustment, and shutdown.

More Information:

  • GARLAND:1046296 ,G4447-47A ,G4447-47F ,G4447-50F ,G4447-51F ,G4447-55F ,G4447-57F ,G4447-61F ,G4447-63F||MONTAGUE:01001-4 ,01003-0 ,04330-3 ,1001-4 ,1003-0 ,2405-8 ,2406-6 ,2408-2 ,2408-6 ,25549-1 ,28040-2 ,4328-1 ,4330-3 ,CB-5 ,CR1 ,G-8 ,MON04330-3 ,MON4330-3||STAR MFG:2V-Y7249 ,2V-Y8832 ,Y7249 ,Y8832 ,Y8838

Step1: Turn off gas supply and disconnect power to the appliance before starting work.

Step2: Remove the control knob and access the existing burner valve assembly carefully.

Step3: Install the burner valve ensuring NPT threads are properly sealed.

Step4: Tighten securely, reconnect gas line, check for leaks, and restore power safely.

Step5: Test burner operation and ensure flame stability before regular operation.
