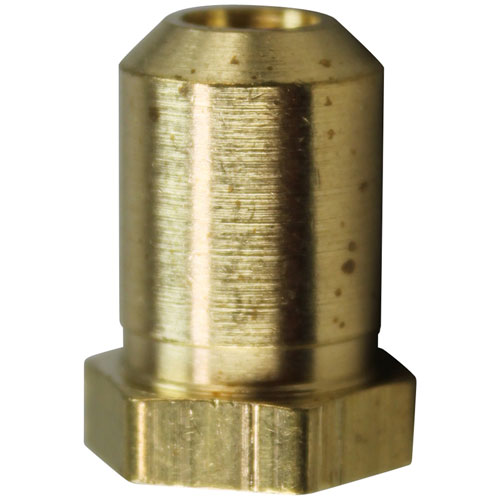

Garland 223242-50 Char Broiler Orifice #50 3/8"-27 X 1/2" High

SKU: 223242-50 1-223242-50 Brand:
Garland
Availability:
Out of Stock
(0)
$6.00
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #50
  • American Range Broiler Aecb
  • Garland / Us Range Oven 836 Cuisine (Lp)
  • Imperial Broiler Series: Eba, Irb.
  • Oven Series: Icv, Icvd. (Lp)
  • Star Broiler Where Applicable. Fryer 630F
  • Us Range Broiler Pma/Rb-36, Rb-26.
  • Series: 1000 Front Burner, Rba (Used For Nat Gas).
  • Fryer Rcf-(2424,2448).
  • Oven Series: 836 Cuisine Standard Ovens,
  • Performer Ii Convection Ovens With S/N Beginning With "V".
  • Range Sp-1855 Small Burner, Tr H Shaped Burner.

Description

The Garland 223242-50 Char Broiler Orifice with brass hood is a gas metering device that is used to regulate the amount of fuel used in commercial cooking appliances. It operates by maintaining the level of gas supplied by the valve to the burner at a precise level so that the flame performance remains constant throughout the operation. This opening is fitted to ranges and ovens that take liquid propane, and it is directly inserted into the burner assembly. In the gas system of the appliance it is vital for the proper combustion process.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

This Part Fits the Following Models

100 models
Garland GXRN48 Garland H/P-280 Garland HP-280 SERIES Garland MCO-ED-10 Garland MCO-ED-10-S Garland MCO-ED-20 Garland MCO-ED-20-S Garland MCO-ES-10 Garland MCO-ES-10-S Garland MCO-ES-20 Garland MCO-ES-20-S Garland MCO-GD-10 Garland MCO-GD-10-S Garland MCO-GD-20 Garland MCO-GD-20-S Garland MCO-GS-10 Garland MCO-GS-10-S Garland MCO-GS-20 Garland MCO-GS-20-S Garland SP-1844-2F Garland SP-1844-2S American Range ADJ American Range ADJF American Range AECB American Range AERB American Range AMSQ American Range ARB American Range ARCM American Range ARRB American Range ARSM American Range ARSM-24 American Range ARSM-36 APW GGM-18H APW GGM-18I APW GGM-24H APW GGM-24I APW GGM-36H APW GGM-36I APW GGM-48H APW GGM-48I APW GGT-18H APW GGT-18I APW GGT-36H Atosa ATCB-24 Atosa ATCB-36 Atosa ATCB-48 Atosa ATRC-24 Atosa ATRC-36 Atosa ATRC-48 Imperial EBA SERIES Imperial GD SERIES Imperial ICRA-1 Imperial ICRA-2 Imperial ICRA-3 Imperial ICRA-4 Imperial ICRA-5 Imperial ICV Imperial IDR-37 Imperial IDR-49 Imperial IDR-61 Imperial IGT SERIES Imperial IHR Diamond Imperial IHR-6-C Imperial IHR-G24-2-C Imperial IR SERIES Imperial IR-24 Imperial IR-36 Imperial IR-48 Imperial IR-60 Imperial IR-72 Imperial IRB-72 Imperial ISPA-18 Imperial ISPA-18-2 Imperial ISPA-18W Imperial ISPA-18W-2 Royal Range RCOS Royal Range RCOS-2 Royal Range RR-10 Royal Range RR-10G12 Royal Range RR-12 Royal Range RR-24RB-120 Royal Range RR-2G12 Royal Range RR-2G24 Royal Range RR-2G36 Royal Range RR-2G48 Royal Range RR-2G60 Royal Range RR-36RB-126 Royal Range RR-4 Royal Range RR-4-36 Royal Range RR-48RB-126 Royal Range RR-4G12 Royal Range RR-4G24 Royal Range RR-4G36 Royal Range RR-4G48 Royal Range RR4RG12 Royal Range RR-4SU Royal Range RR-6 Royal Range RR-6G12 Royal Range RR-6G24 Royal Range RR-6G36
Showing of 100.0

AMERICAN RANGE:

11050 A29004

APW WYOTT:

2066850 AS-2066850

ATOSA:

301040007

GARLAND:

1020850 M8-50

GLASS MAID:

8-50

HOBART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150

IMPERIAL:

1700-50 2065

ROYAL RANGE:

1121-50 1122-50

SOUTHBEND:

1006450 1008750

STAR MFG:

2J-Z3033 E6-Y9943 Y9943 Z3033

STERO:

STA2J-Z3033 STAZ3033

VULCAN HART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150 VH19951-50 VH719951-50

Step1: Turn off the main gas supply before starting.

Step2: Remove the old orifice from the burner assembly.

Step3: Clean the orifice port and surrounding area to remove debris.

Step4: Install the new orifice in the same orientation, ensuring a snug fit.

Step5: Reconnect gas lines and tighten fittings securely.

Step6: Turn on gas slowly and test burner flame for proper operation.

  • What maintenance is required for the Garland 223242-50 Orifice?

    Regularly inspect and clean the orifice to remove debris that could block gas flow. Proper care assists in maintaining consistent flame output and stable operation.

  • What are common issues with the Garland 223242-50 Orifice?

    • Blockages reduce gas flow.
    • Irregular or weak flame output.
    • Orifice wear is affecting accuracy.
    • Gas pressure inconsistencies.
    • Debris accumulation inside the opening.
    • Performance fluctuations during use.
